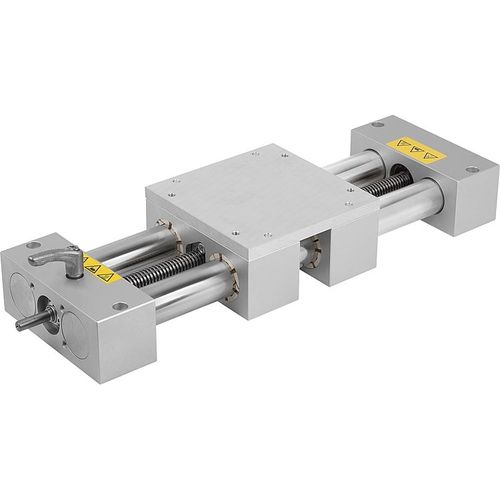

Double tube linear actuator with mounting bracket

Description
Material:
Housing aluminium.
Precision tube DIN EN 10305, stainless steel 1.4301.
Trapezoidal thread spindle steel.

Note:
The double-tube linear actuator can be operated manually or electrically. Due to the short duty cycle, the units can be adjusted several times a day at low speed and with high stability. Width, length and height adjustment possible.

Technical data:
Duty cycle: S3, 30% (at 60 min.)

Temperature range:
Temperature range 0° C to +60 °C

On request:
Other lengths.

Parameter Name	Parameter Value
Operation	electric, manual
Other characteristics	aluminum for heavy loads
Stroke (mm)	500 - 1000
