Long motor positioning tables coaxial drive

Our motor positionig Tables are cheap and sturdy solutions for adjusting and positioning tasks of machines and devices. The high precise and durable guiding lines are vibration-reducing and insensitive against impacts and environmental influences. The slide bushings and the spindle nuts be suited for dry operation. For higher load, we recommand lubrication with a plastic fat (Recommendation: Klüber POLYCLUB GLY 501).

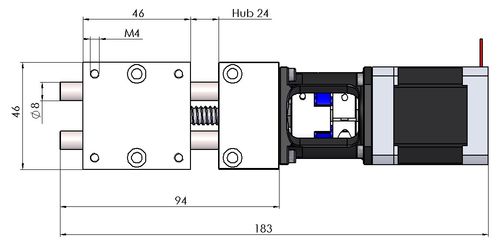

Long motor positioning table coaxial drive with motor MPT5008-AK-M

combinable with other MM adjustment units
axial backlash < 0,04mm
radial clearance of the sliding guide <0,02mm
spindle pitch 2mm
maximum input speed 600 rpm
travel 50mm
suitable for axial addition of a step motor (Nema 17, □42mm)

Parameter Name	Parameter Value
Operation	electric
