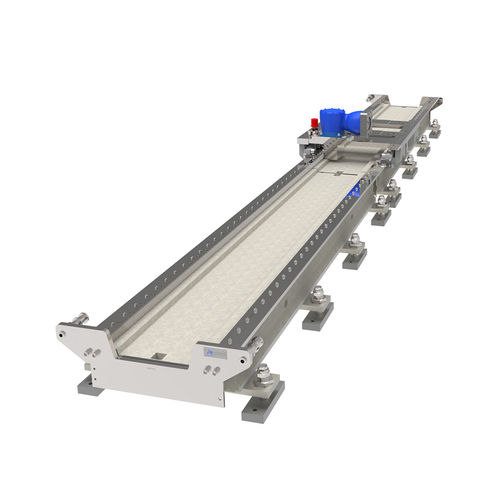

• The world’s first concrete robot travel axis
• Very little ecological impact
• Extremely small footprint due to internal E-Chain
• Torsional stiffness
• Enormously low vibration due to material properties of concrete
• Low noise emissions
• 4 variants for 95 % of all robots
• Modular design
Technical specifications
Material -

Composite concrete
Profile -

Single profile
Width -

approx. 1,010 mm
Height -

approx. 480 mm
Mass per meter -

approx. 450 kg
Max. travel velocity -

3 m/s
Max. acceleration -

4 m/s²
Max. load capacity -

30,000 N
Max. moment Mz -

65,000 Nm
Repeatability -

0.1 mm
Robot examples -

ABB IRB 6640, FANUC R-2000iC/165F, KUKA KR QUANTEC-Series, Yaskawa Motoman ES200, Y

Parameter Name	Parameter Value
Operation	electric
Type	profile
Other characteristics	for robots
Speed (mm/s)	3000 - 3000
Force (N)	30000 - 30000
