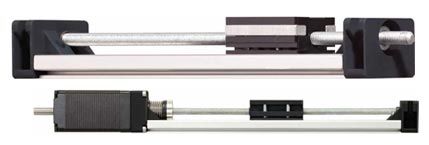

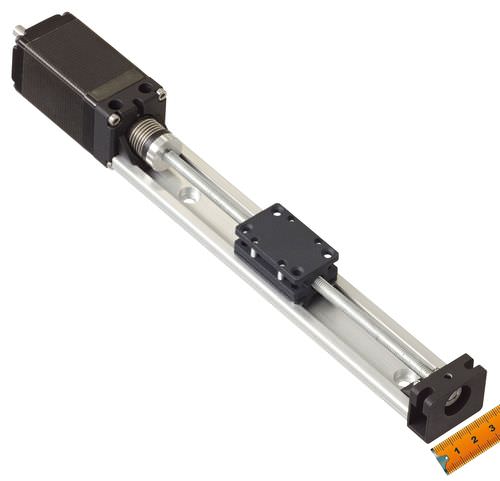

With its compact and lightweight design, Igus®'s spindle-driven linear axes are perfect for field applications in space-constrained areas that require superior performance and reliability. The system is capable of accommodating Ø 5 of spindle feed and 0.8/5 mm pitch.
Not only does the device support the NEMA 11 step motors but also drylin® N system of size 27 installation. The 100% lubrication- free feature along with its small light and flat body make it best fit to meet the demanding requirements of the industry.
By utilizing plastic bearings for its spindle and guide carriage, this device ensures lubrication-free operation and a low maintenance operation. And with anodized aluminium rail, this product is certified corrosion resistant for longer service life cycle.
The device has a wide variety of application such as Feed movements with low weight, sensor adjustments, easy handling tasks in equipment and laboratory technology.

Parameter Name	Parameter Value
Operation	electric
Other characteristics	aluminum
Stroke (mm)	250 - 250
Force (N)	10 - 40
