Element

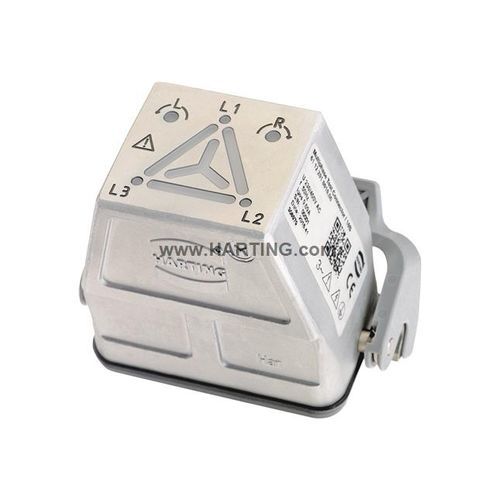

Multiphase test connector
Type of hood/housing
Cable to cable housing
Gender
Male
Size
10 B
Number of contacts
10
Locking type
Single locking lever
Han-Easy Lock
®
Yes
Rated voltage conductor-earth
230 V
Rated voltage conductor-conductor
400 V
Pollution degree
2
Overvoltage category
III
Limiting temperature
0 ... +50 °C
Mating cycles
≥ 500
Degree of protection acc. to IEC 60529
IP54
Surface (contacts)
Silver plated
Material (hood/housing)
Aluminium die-cast
Surface (hood/housing)
Glass bead blasted
Material (locking)
Polycarbonate (PC)
Stainless steel
Colour (locking)
RAL 7037 (dust grey)
Material flammability class acc. to UL 94 (locking levers)
V-0
RoHS
compliant with exemption
ELV status
compliant with exemption
China RoHS
50
REACH Annex XVII substances
Not contained
REACH ANNEX XIV substances
Not contained
REACH SVHC substances
Yes
California Proposition 65 substances
Yes
CE
Yes
