About

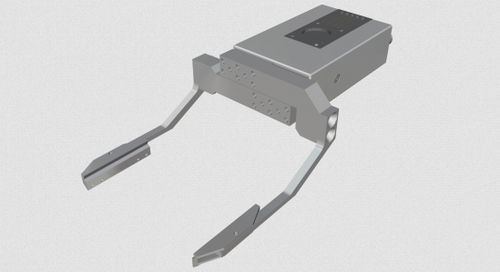

SG is a 2-finger electric gripper with serial interface that optimizes the sensitive handling of the various products and devices in the laboratory automation as well as a wide range of applications in the general industry.
Advantages
Precise positioning of the gripper fingers
Programmable gripping force and speed
High positioning speed
Simple integration in laboratory and process automation
Grip actuation via embedded controller
Easy cleaning
IP30 protection class (IP68 optional)
Additional accessories: connection cable, mounting interfaces, gripping fingers.
Noise Emission (Sound Pressure) ≤ 40 dB(A) in any direction
Nominal Voltage 24 V DC
Maximum Power Consumption 0.5 Amp
Communication Interface RX/TX (RS232/ RS485)
Recommended operating environment -20 - +60°C
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Operation |
electric
|
| Type |
parallel
|
| Number of jaws |
2-jaw
|
| Application |
handling
|
| Options |
2 fingers
|
| Grip strength (N) |
50 - 100
|
| Stroke (mm) |
25 - 50
|
