Features:

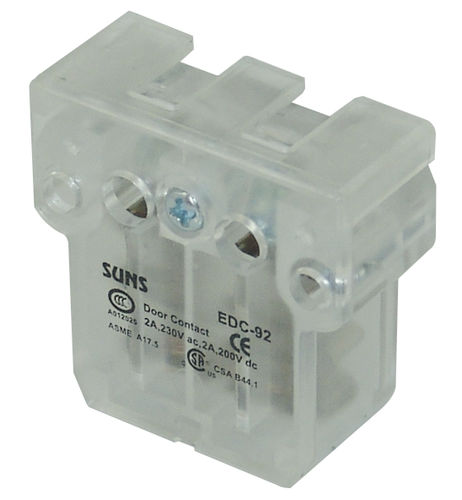

1）For use in controlling the closure position of lift doors
or as switch for locking mechanism of automatic doors
Safety switch with positive contact
Specifications:
Actuator: Silver-plated brass with PA6/66 (UL94-V0) enclosure
--------------------------------------------------------------------------------
Contact Material: Cu-rivets with silver coating
--------------------------------------------------------------------------------
Mounting: 2xM4 thread rolling captive screws
--------------------------------------------------------------------------------
Contact Type: 1NC
--------------------------------------------------------------------------------
Termination:M3.5 screw switch self-lifting clamp (conductor cross-section 0.5 to 1.5 mm2)
--------------------------------------------------------------------------------
Switching Frequency: 30 ops/min
--------------------------------------------------------------------------------
Rated Thermal Current (Ith):4A
--------------------------------------------------------------------------------
Rated Operation Current/Voltage (Ie/Ue):2A/230VAC; 2A/200VDC (according to EN81-1, -2)
--------------------------------------------------------------------------------
Short-time current protective device: Fuse 6A gL
--------------------------------------------------------------------------------
Ambient Temperaturel: -30~+80oC (-22~176oF)
--------------------------------------------------------------------------------
Mechanical Life:Mechanically 10 millions operations
--------------------------------------------------------------------------------
