Thrust range, maximum speed
Specially for high load application, maximum thrust to 50 tons, with heavy ball screw and high efficiency, high frequency of linear motion, with brake, limit switch, the perfect combination of thrust overload limiter, widely used in ports, steel, mining and other machinery. In the case of power-off through the brake to keep the effective load . Equipped with manual release, the built-in CAM limit switch, external mechanical limit switch, potentiometer, dust cover and so on. Continuous work in half an hour. Temperature range : -15 ℃ to 50 ℃. Protection grade: IP44, IP55.

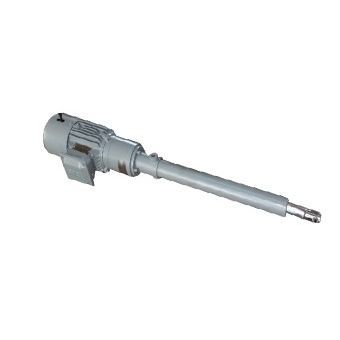

ZBM coaxial ball screw electric cylinder
Thrust range: 0.2 to 50 tons Max speed：200mm/s Max stroke：2m Accessories: brake motor, encoder, limit switch, dust cover, trunnion, trapezoidal screw, anti-rotating institutions, reducer

Parameter Name	Parameter Value
Type	electric
Technology	ball screw
Material	steel
Other characteristics	for heavy loads with brake
Force (N)	5 - 499
Speed (mm/s)	200 - 200
