New electric cylinder for heavy-duty applications

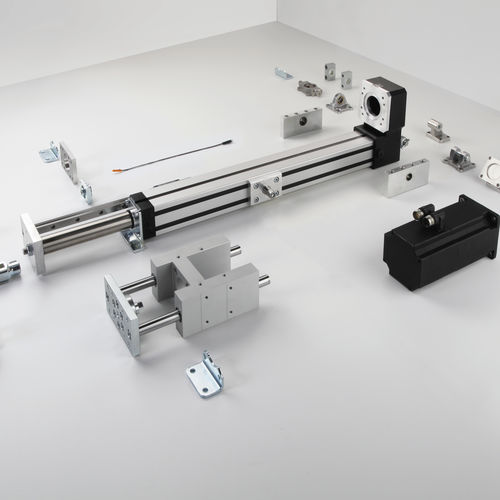

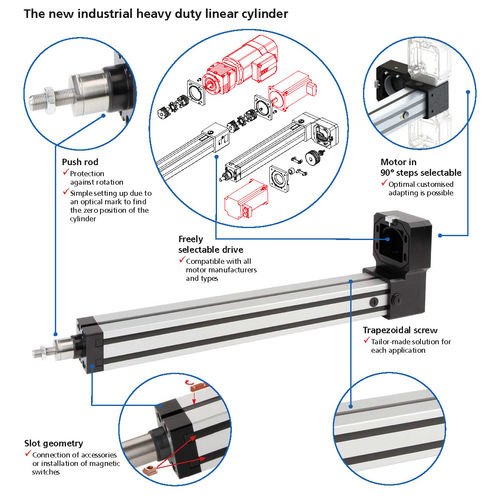

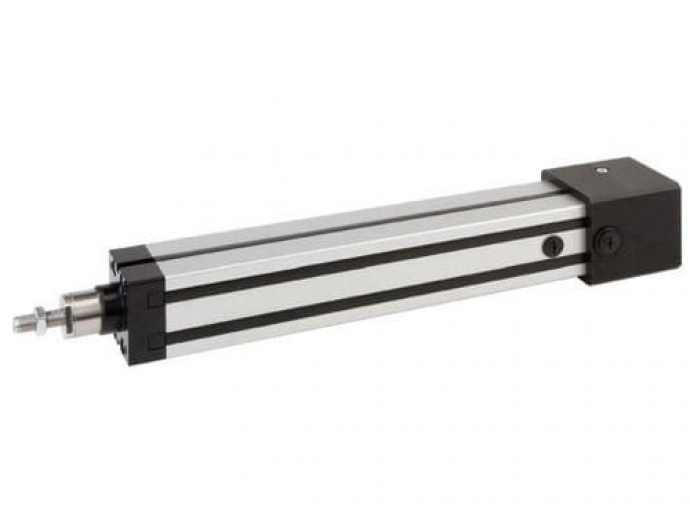

RK Rose+Krieger has expanded its range of electric cylinders with the introduction of an additional electromechanical heavy-duty cylinder: the SLZ 63. Thanks to its square shape, slots in the external profile and fitting dimensions according to DIN ISO 15552, the SLZ 63 can be integrated flexibly into a wide range of customer-specific applications. As the motor is fitted parallel to the cylinder, it has an ideal height/stroke length ratio. The maximum stroke length is 1,000 m, but stroke lengths of up to 1,500 m can be provided on request. The cylinder versions come with an IP 54 protection rating as standard. The IP 65 protection rating is also available as an option.

Parameter Name	Parameter Value
Type	electric
Technology	cylinder with servo-motor ball screw trapezoidal screw
Material	aluminum
Voltage (V)	230 - 230
Norms	ISO 15552
Protection class	IP54 IP65 robust
Applications	guide industrial for the automotive industry for lifting applications for lifting for construction equipment for vehicles linear for mechanical testing for demanding applications for furniture for robots lift table for ventilation systems for lifting platforms for materials handling for solar panels damper
Other characteristics	for heavy loads compact end-of-stroke with flange standard motorized high-efficiency tie-rod positioning traction type with potentiometer with internal stroke limiter custom high-speed high-performance wear-resistant high-tonnage high-force long-stroke high load capacity with integrated displacement encoder adjustable-stroke with integrated position sensor high-torque multi-purpose with linear motion units
Stroke (mm)	100 - 1000
Force (N)	10000 - 15000
Speed (mm/s)	0 - 1250
