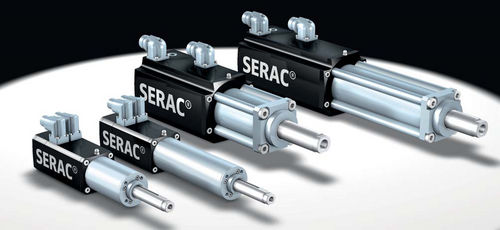

This compact electric cylinder is particularly suitable for direct use in numerous cases, as opposed to using hydraulic cylinders. The torque motor has a shaft in the form of a screw at the output end and can directly drive the nut. The result is a low mass moment of inertia which provides the optimum amount of dynamic behaviour.

The cylinder is ideal for applications with high dynamics (where acceleration up to 26.5m/s2 is possible). The power transmission through the output rod provides a low moment of inertia. It benefits from high control quality for fast positioning, and exceptionally short cycle times are given. An incorporated locking design gives smart designs. A limit switch can be mounted directly onto the cylinder. The SERAC XH can be supplied with an optional holding brake.

The SERAC electric cylindes are able to be operated by using servo controllers from a variety of popular manufacturers. Ortlieb co-operates with LTi DRIVES who manufacture the LTi ServoOne controller for complete, one-stop solutions.

Parameter Name	Parameter Value
Type	electric
Technology	screw
Other characteristics	compact integrated control
Stroke (mm)	50 - 200
Force (N)	1 - 4.5
Speed (mm/s)	125 - 250
