New members of PNCE electric cylinder series

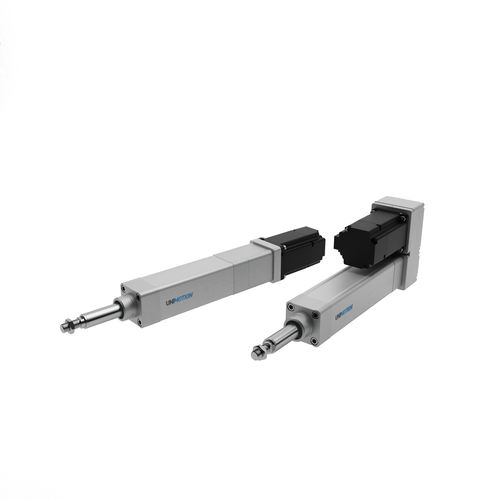

Development of two new PNCE electric cylinders with size 80, 100.
Development of two new PNCE electric cylinders with size 80, 100 with a maximum stroke length of 1500mm and with a maximum axial force of up to 29000 N. Due to the high-precision ball screw, we achieve a repeatability of <0.02mm.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
ball screw
|
| Norms |
ISO 15552
|
| Protection class |
|
| Applications |
food
|
| Other characteristics |
precision
|
| Stroke (mm) |
30 - 1500
|
| Force (N) |
18850 - 290000
|
| Rod diameter |
32 mm, 40 mm (1 in)
|
| Speed (mm/s) |
200 - 1600
|
| Max acceleration |
20 m/s² (65.62 ft/s²)
|
| Ambient temperature |
Min.: 0 °C (32 °F)Max.: 60 °C (140 °F)
|
| Repeatability (mm) |
0.02 - 0.02
|
