About

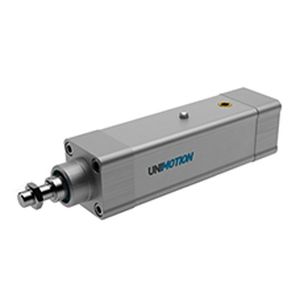

The PNCE are electric cylinders with a precision ball screw drive. The electric cylinder is based on the standard ISO 15552. Its outer design and dimensions are very similar to pneumatic cylinders.
High performance features such as:
- high speeds,
- good positioning accuracy and
- high repeatability
are ensured through a precision ball screw with reduced backlash (preload on request) of the ball nut and non-rotating piston rod. For a long service life the re-lubrication can be done through a lubrication nipple.
The design with its smooth surfaces enables easy cleaning of the cylinder. In combination with a lubricant class H1 it is also suitable for food & beverage applications. It can be additionaly equipped with switches and ISO standard accessories.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
ball screw
|
| Norms |
ISO 15552
|
| Other characteristics |
|
| Stroke (mm) |
1200 - 1200
|
| Force (N) |
15800 - 16700
|
| Torque (Nm) |
|
| Speed (mm/s) |
130 - 230
|
