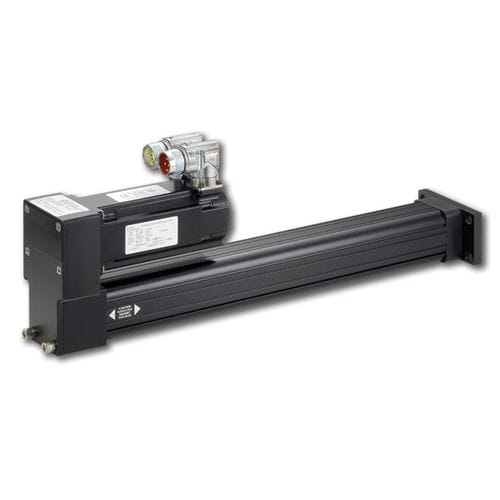

The N2 Series is an economical, light-duty electric cylinder with a small package size designed for exceptional durability and ease-of-use. The complete system provides simple extend-retract motion, positioning either to predetermined stop locations or to an analog voltage input.

Motors available for use with the N2 Series include:
• Kollmorgen T22T/V and T31T/V Series hybrid stepper motors (P7000 drive recommended)
• Kollmorgen AKM23C and AKM23DSeries AKM brushless servo motors
• NEMA 23 custom motor mount

Features
• Max stroke length: 571 mm (22 in)
• Max thrust: 2,670 N (600 lbf)
• Ball or lead screw drive: 2, 5 or 8 revolutions per inch pitch
• Stepper, servo and custom motor options
• Type 380 die-cast aluminum, epoxy-coated bearing housing
• Type 304 stainless steel, 1/4 hard, polished thrust tube
• Ball bearing support
• 6063 T-6 aluminum, hard-coated anodized and Teflon-impregnated cylinder housing
• Polyurethane wiper seal
• Carbon steel acme or ball screws

Options
• Standard or custom lengths to 0.1 inch
• Threaded, eye, spherical or clevis rod ends
• Magnetic home and limit sensors
• Water resistant option
• Linear potentiometer output

Parameter Name	Parameter Value
Type	electric
Technology	ball screw lead screw
Material	aluminum, stainless steel
Other characteristics	with proximity sensor threaded custom positioning small motorized standard
Stroke (mm)	571 - 571
Force (N)	2670 - 2670
Speed (mm/s)	300 - 760
