About

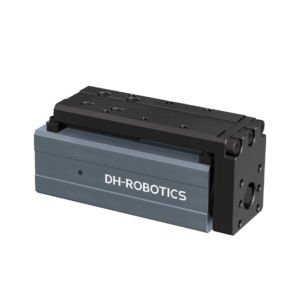

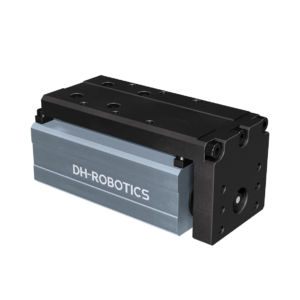

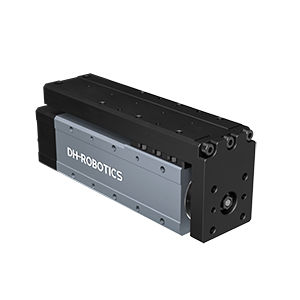

The MCE series is a miniature electric table type cylinder independently developed and manufactured by DH-Robotics,with high energy density, heavy load capacity, and compact design. It can be applied to various application scenarios to complete complex tasks, such as pick and place, arrangement, and handling.
Product Features
High energy density, High load
MCE series electric cylinder provides big thrust force which reach 100 N and 200 N. The max load of MCE series cylinder could reach 12kg.
Adjustable parameters and comprehensive functions
The thrust force, position, and speed parameters are adjustable to meet the basic functions of pushing, pulling, pressing, and positioning at high speeds. It can also be used with jigs or related mechanisms to complete complex tasks such as picking and placing, arranging, and transporting, with stable and excellent performance.
Compact design, small size and space saving
The controller is built-in and can be directly connected to the PLC. The structure is compact, and the width of the body is only 35mm. It supports multi-sided installation and can be deployed in small spaces simply and quickly.
More Features
Adjustable parameters
Smart feedback
Fingertips can be replaced
IP40
CE certification
FCC certification
Automotive and auto components Industry
Automobile interior parts assembly; automobile engine parts pallet delivery; engine block parts inspection; automobile axle parts axle ring press fitting; battery container delivery, etc.
Electronic Industry
Electronic component handling and picking; circuit board probe conductivity inspection; glass panel positioning inspection, etc.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
servo-motor
|
| Protection class |
IP40
|
| Applications |
|
| Other characteristics |
|
| Stroke (mm) |
30 - 50
|
| Force (N) |
9 - 200
|
| Torque (Nm) |
3.3 - 30.5
|
| Speed (mm/s) |
50 - 1000
|
| Ambient temperature |
Max.: 40 °C (104 °F)Min.: 0 °C (32 °F)
|
