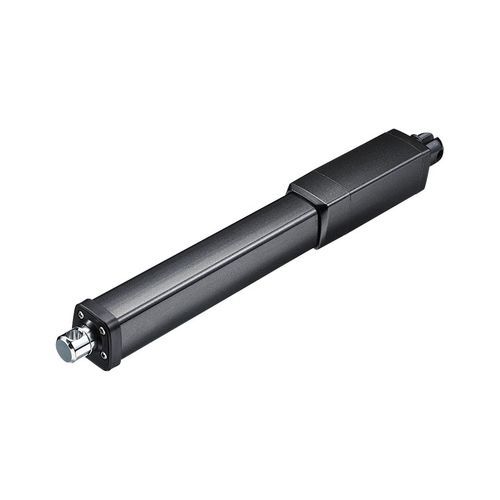

TiMOTION’s JP4 series inline linear actuator is most similar to the JP3, but was designed for industrial applications that require higher load and speed. Its IP69K protection ensures it will withstand high temperature, high pressure water jets, and the ingress of dust and other solid contaminants. For synchronization and position feedback, the JP4 can be equipped with Hall sensors.

• Retracted length: ≥ Stroke + 289mm

• Certificate: UL73

• Output signals: Hall sensors

• Color: Black, grey

• Operational temperature range at full performance: +5°C~+45°C

• Storage temperature range: -40°C~+70°C

Parameter Name	Parameter Value
Type	electric
Motor	DC
Protection class	IP69K dust-proof
Applications	industrial high-temperature
Other characteristics	high-speed high-pressure pull push tug
Stroke (mm)	20 - 1000
Force (N)	3000 - 4500
Speed (mm/s)	0 - 2.5
Ambient temperature	Max.: 65 °C (149 °F)Min.: -5 °C (23 °F)
