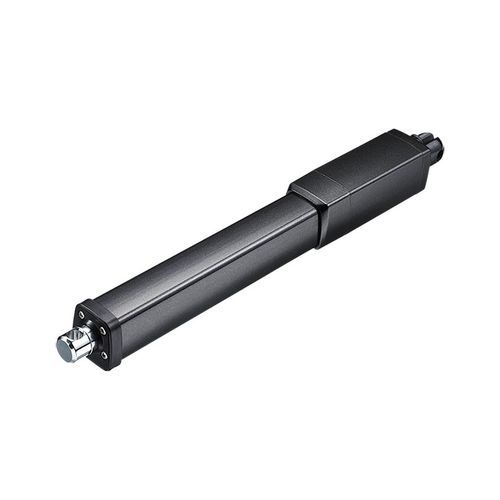

TiMOTION's JP3 series inline linear actuator was designed for low load industrial applications where up to IP69K dust and liquid ingress protection is necessary. It is best suited for applications with visual or compact installation dimension requirements. Hall sensors are optional for the JP3 which allow for synchronization and position feedback.

• Retracted length: ≥ Stroke + 217mm

• Certificate: UL73

• Output signals: Hall sensors

• Color: Black, grey

• Operational temperature range at full performance: +5°C~+45°C

• Storage temperature range: -40°C~+70°C

Parameter Name	Parameter Value
Type	electric
Motor	DC
Protection class	IP69K
Applications	industrial
Other characteristics	compact pull push tug
Stroke (mm)	20 - 1000
Force (N)	2000 - 2000
Speed (mm/s)	0 - 3.5
Ambient temperature	Max.: 65 °C (149 °F)Min.: -5 °C (23 °F)
