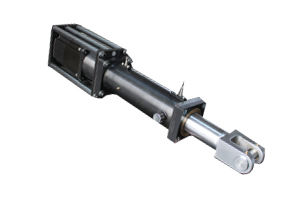

LIM-TEC IMB Series Servo Electric Cylinder with advanced servo cylinder structure design and imported parts assembly, ensure that Lim-Tec servo electric cylinder in the domestic leading position, precision grinding ball screw to ensure the overall precision of the position servo cylinder is 0.02 mm, closed-loop control accuracy is 5 um; Maximum rated load reach 50 tons; Speed is 1 m/s, 100% can work continuously; Precision thrust control accuracy was 5%, the closed-loop control accuracy is 1%; Precise control the speed, high performance low speed, high dynamic response time, high acceleration, high rigidity, impact resistance; Long life, simple operation and maintenance, low noise.Can trouble-free long-term work under the bad environment, and realize high strength, high speed, high precision movement, movement is smooth, low noise, special anti-rotating function ensure the high accuracy position control and high security; Servo electric cylinder hydraulic cylinder and the cylinder can replace completely, greener and more energy efficient, and implement the environment cleaner, the advantages of easy connect to PLC control system such as to achieve high precision motion control. Servo electric cylinder can achieve IP55 protection grade, IP56, so it can be widely used in paper making industry, chemical industry, welding industry, such as outdoor conditions under the condition of normal work!
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
ball screw
|
| Protection class |
|
| Other characteristics |
precision
|
| Stroke (mm) |
500 - 3000
|
| Force (N) |
600 - 150000
|
| Torque (Nm) |
|
| Speed (mm/s) |
333 - 453
|
| Max acceleration |
3 m/s², 6 m/s², 10 m/s² (9.84 ft/s²)
|
| Repeatability (mm) |
0.02 - 0.03
|
