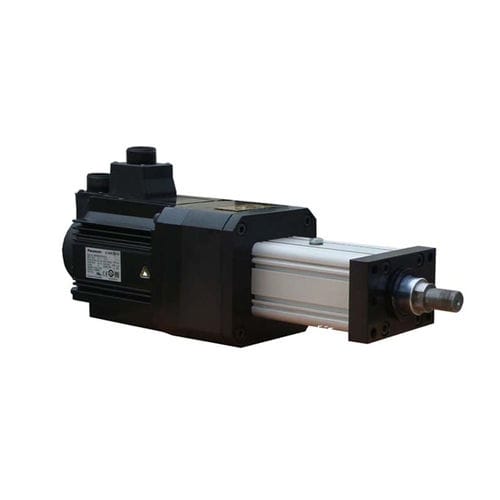

Servo electric cylinder working principle:Servo electric cylinder is a modular product designed by integrating servo motor and ball screw, which converts the rotary motion of servo motor into linear motion, and at the same time optimizes the advantages of servo motor - precise speed control, precise rotation control and precision torque control is transformed into precise speed control, precise rotation control and precise thrust control. This is a new revolutionary product for high precision linear motion series. The best substitute for pneumatic cylinder and hydraulic cylinder.



Application：

Dynamic 3D 4D entertainment facilities

Game platform

Multiple degrees of freedom

Simulation machinery

Precision machinery

Robots

Parameter Name	Parameter Value
Type	electric
Technology	with piston rod with servo-motor ball screw
Configuration	double-acting
Material	steel, aluminum
Protection class	dust-proof waterproof
Applications	for lifting applications handling for robots brake for presses for demanding applications for medical applications for punching tools for welding applications for lifting platforms for agricultural machinery for lifting industrial for the automotive industry for construction equipment
Other characteristics	hole punch compact precision high-torque multi-purpose with parallel motor with flange long-stroke high-speed low-friction paper machine high-tonnage flange high-performance swaging high load capacity with integrated limit switch repairable low-temperature high-frequency high-efficiency bending adjustable-stroke high-force pick-and-place anti-corrosion standard
Stroke (mm)	50 - 1500
Force (N)	10 - 100
Torque (Nm)	35 - 45
Speed (mm/s)	10 - 500
