Advantages
• Infinite stroke adjustment with end position limitation by limit switches (safety limit switch optional)
• Long lifetime with trapezoidal threaded spindle
• Increased lifetime with ball screw
• Integrated anti-twist device and self-centring spindle support
• Large number of stroke speeds
• Graduation of the available stroke lengths in 50 mm steps up to 600 mm (intermediate lengths and overlengths on enquiry)
• Various mounting options
• Splash-proof IP54

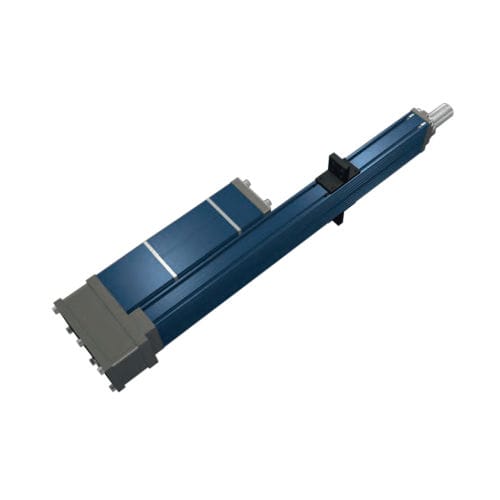

ELECTRICAL CYLINDERS – FOR HIGH PERFORMANCES AND LONG LIFETIMES
Electrical cylinders (old designation: FlexLine) are intended for industrial use, therefore they are particularly robust and equipped with high safety standards.

They have a compact design and are intended for precise positioning tasks.

THE STRUCTURE OF THE ELECTRICAL CYLINDERS LOOKS LIKE THIS
Typical of the electrical cylinders (FlexLine) is the aluminium profile. Fastening plates, limit switches and reed contacts can easily be attached there later on. The modular construction of the electrical cylinders (FlexLine) makes them versatile in use.
The spindles are equipped with different pitches and up to three planetary gear stages for different lifting speeds.

THESE SERIES ARE AVAILABLE
You can select from three series:
• EZ 10
Motor power 0,06 - 0,12 kW
• EZ 20
Motor power 0,25 - 0,5 kW
• EZ 30
Motor power 0,75 - 1,5 kW

Parameter Name	Parameter Value
Type	electric
Protection class	IP54
Applications	industrial
Other characteristics	compact threaded positioning
Stroke (mm)	50 - 600
