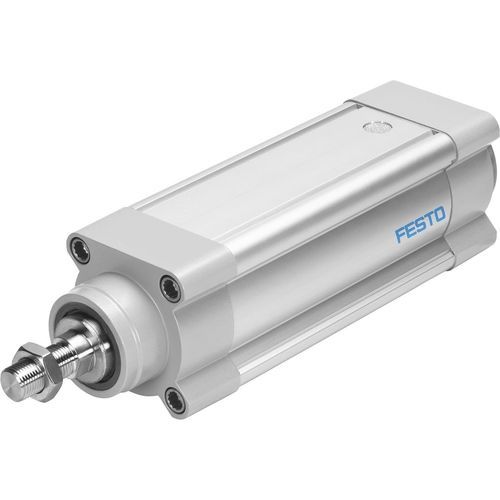

Up to 17 kN dynamic forward force: the extremely powerful electric cylinder ESBF shines wherever heavy-duty, reliable positioning is required together with precision and dynamic response.

• Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50)
• Ball screw drive: three spindle pitches make it possible to select the optimal force-speed ratio
• Optional: high corrosion protection, IP65 rating, food-safe (see www.festo.com/certificates/ESBF), piston rod extension
• Axial or parallel motor mounting
• 68 types in stock with short delivery times and modular products for custom variants
• Variants recommended for production facilities for the manufacture of lithium-ion batteries

Parameter Name	Parameter Value
Type	electric
Technology	ball screw lead screw
Material	stainless steel, aluminum
Protection class	IP65
Other characteristics	motorized anti-corrosion
Stroke (mm)	30 - 1500
Force (N)	600 - 1700
Speed (mm/s)	100 - 1300
Max acceleration	Max.: 25 m/s² (82.02 ft/s²)Min.: 2.5 m/s² (8.2 ft/s²)
Ambient temperature	Max.: 60 °C (140 °F)Min.: 0 °C (32 °F)
