About

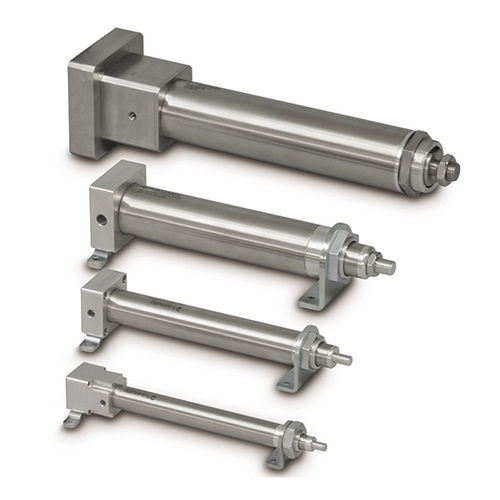

ERD low-cost electric cylinder series are the perfect alternative to pneumatic cylinders for automating manual processes.
The ERD is an economical electric cylinder and is compatible with many NEMA & metric mount stepper and servo motors to create a flexible, powerful, yet cost-effective electric cylinder solution over traditional pneumatic cylinders.
Perfect for gating, sorting, diverting and product change overs, ERD electric cylinders offer these features:
• 3 body sizes
• Ball and acme screw choices
• Force/thrust capabilities up to 500 lbf (2.2 kN)
• Stroke lengths up to 24 inches (610 mm)
• Guide and anti-rotate options
• IP67 and IP69K options
• All stainless steel body options
• Stepper and servo drive/controller and motor solutions
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
cylinder
|
| Material |
stainless steel
|
| Protection class |
IP69K
|
| Other characteristics |
|
| Force (N) |
0 - 2200
|
