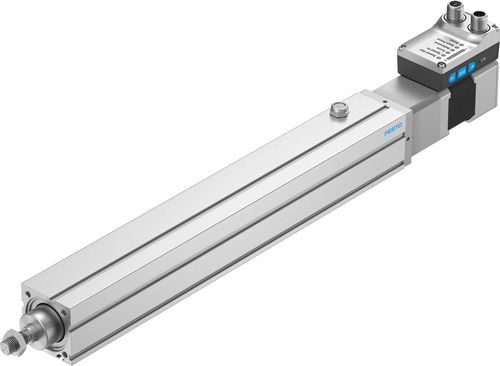

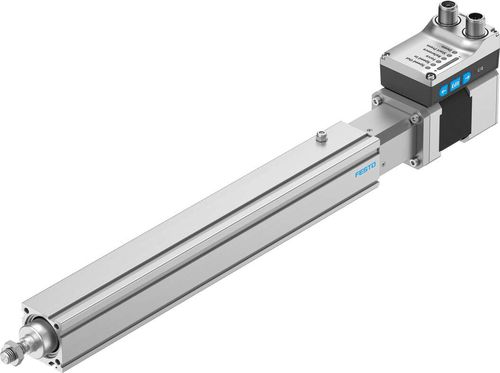

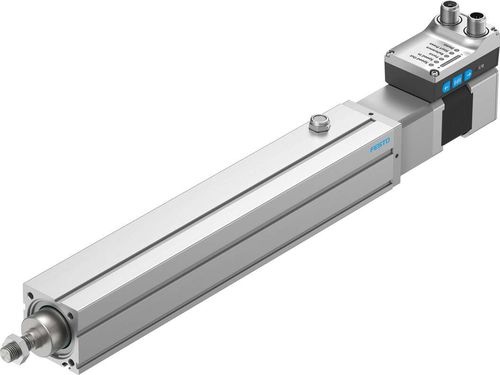

Extremely low-cost yet high-performance and highly flexible: EPCS. With this the simplicity of pneumatics is combined with the benefits of electrical automation. Highly compact, ideal for small installation spaces. EPCS can be configured simply – without any software!

• Complete solution consisting of integrated actuator, motor and servo drive
• Extremely cost-effective, yet powerful and highly flexible
• Ideal for individual linear movements in every installation position and especially for vertical Z movements
• Precise positioning due to smoothly running ball screw drive
• Compact dimensions
• Safe movement due to flexible position sensing
• Integrated end position sensing
• Two control options integrated as standard: digital I/O and IO-Link
• Easy commissioning according to the plug and work principle: all parameters are manually adjustable directly on the actuator without any software or special expertise required
• Three sizes with a max. stroke of 500 mm
• Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation

Parameter Name	Parameter Value
Type	electric
Technology	ball screw
Configuration	double-acting
Material	stainless steel, aluminum
Protection class	IP40
Other characteristics	compact positioning high-performance small with brake
Stroke (mm)	25 - 500
Force (N)	75 - 900
Speed (mm/s)	100 - 200
Max acceleration	Max.: 5 m/s² (16.4 ft/s²)Min.: 0.5 m/s² (1.64 ft/s²)
Ambient temperature	Max.: 50 °C (122 °F)Min.: 0 °C (32 °F)
Repeatability (mm)	0.02 - 0.02
