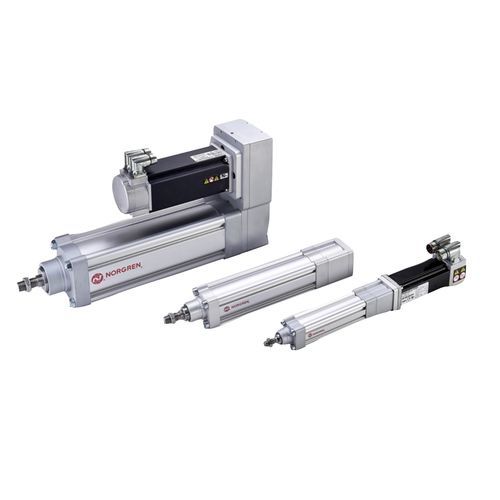

Electric cylinder ELION

Electric cylinder ELION

Electric cylinder ELION

About


A range of ISO standard rod-style, ball screw electromechanical linear actuators available with or without servo motors, in 6 bore sizes with 2 motor mounting options.

- Accurate and Repeatable
Ball screw and servo motor provides accurate and repeatable positioning
- Long Life
Ball screw and bearing mechanisms enable high cycle life
- Ease of Installation
Based on ISO 15552 standard with universal mounting options
- Performance Monitoring
Integral sensors and external switches monitor actuator performance and enable planned maintenance
- Energy Saving
Electromechanical components efficiently convert electricity to mechanical power, only energised when movement is required, reducing energy consumption and the cost of ownership.
- Safety in Service
Servo motor with optional integrated holding brake enables actuators to self-lock when the power is isolated
- Environment
IP65 options for both axial and parallel mounted motors ensure actuators will continue to operate in dusty and wet environments
- Smart Configurations
Online configurator enables quick and easy product selection based upon customer application input
- Flexible Service
Customised motor interfaces allow customers to fit their own preferred motors



PARAMETERS

Parameter Name Parameter Value
Type
electric
Technology
  • with piston rod
  • with servo-motor
  • ball screw
Norms
ISO 15552
Protection class
IP65
Other characteristics
precision
Stroke (mm)
100 - 1500
Force (N)
30.4 - 30.4
Torque (Nm)
0.16 - 10.5
Speed (mm/s)
1600 - 1600
Ambient temperature
Max.: 60 °C (140 °F)Min.: 0 °C (32 °F)
