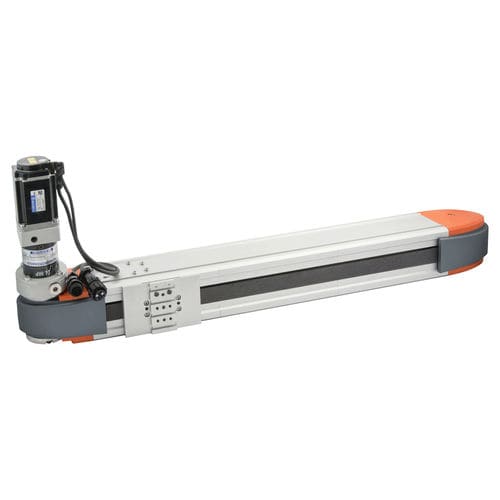

Belt-driven rodless electric cylinder with V-Lock type interface.
The cylinder structure features a sturdy anodised aluminium extruded profile to ensure optimal rigidity. The typical V-Lock dovetail (no grooves) is provided for easy installation using QS elements. The V-Lock interface with a dovetail and standard grooves is mounted on the moving plate to fix the other components using K or QS elements. The slide is moved by means of adjustable casters running along hardened and tempered guides inserted into the extruded profile, to obtain a rigid system with adjustable clearance. Guide lubrication nipples are also mounted on the slide plate. The slide is driven by a reinforced belt that is in turn operated by a pulley keyed onto the motor; a mechanical belt-tensioning system is mounted on the cylinder.
Different drives are available, both brushless and stepping. The versions with a brushless motor can be equipped with a 1:3 speed gearbox, when you want to make the most of the available torque.
In addition to the standard drives included in the catalogue, custom cylinder can also mount other types of motor. The homing position is identified by a inductive sensor included in the supply.Two different size are available, SHAK 340 and SHAK 470, with pre-set standard strokes. For each size it is possible to choose side on which to mount the motor (4 positions). A version with a smooth tree-type output, mounted in a pre-set position, is also available. The SHAK cylinder can be mounted both horizontally and vertically.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
|
| Material |
anodized aluminum
|
| Protection class |
reinforced
|
| Other characteristics |
|
| Stroke (mm) |
400 - 2400
|
| Force (N) |
70 - 1000
|
| Speed (mm/s) |
2000 - 5000
|
| Ambient temperature |
Max.: 50 °C (122 °F)Min.: -10 °C (14 °F)
|
