Electric cylinder EAC-AZ series

Electric cylinder EAC-AZ series

Electric cylinder EAC-AZ series

About

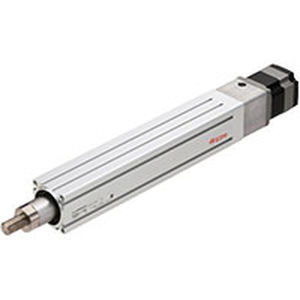

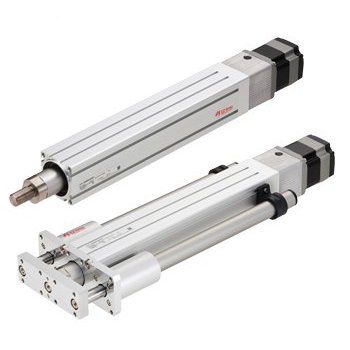

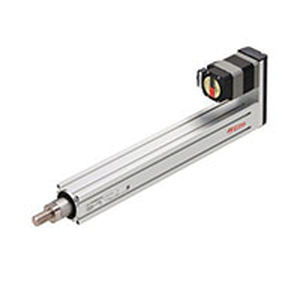

The AlphaStep EAC Series stepper motor linear cylinders are quick and responsive and incorporate a ball screw design, offering high performance from low speed to high speed or with light loads or heavy loads, regardless of demanding operating conditions. Available in a straight type or reversed motor type and with a shaft guide and cover version also available, saves design time and parts.

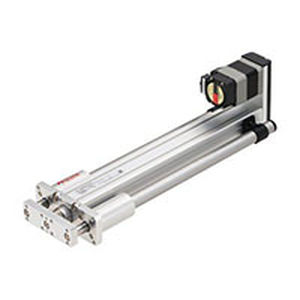

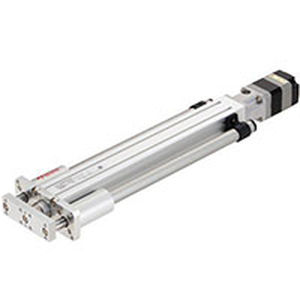

• Available with or without Shaft Guide
• Electromagnetic Brake available
• AC or DC Input
• Repetitive Positioning Accuracy = ±0.02 mm



PARAMETERS

Parameter Name Parameter Value
Type
electric
Technology
  • ball screw
  • stepper
Motor
DC, AC
Other characteristics
  • for heavy loads
  • positioning
  • high-performance
  • high-speed
  • with integrated controller
  • with brake
Stroke (mm)
50 - 300
Force (N)
70 - 500
Speed (mm/s)
300000 - 600000
Repeatability (mm)
0.02 - 0.02
