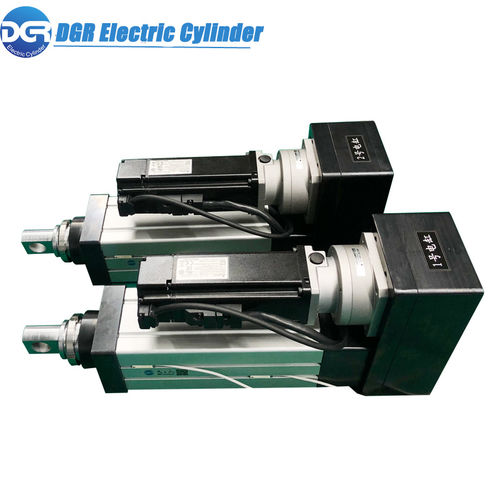

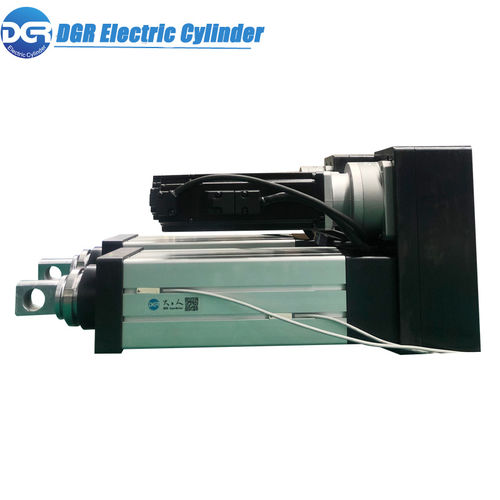

Features
The load capacity is extremely strong when used vertically. Horizontal use and external guide mechanism can effectively improve the lateral load capacity of the electric cylinder;
High-speed, high-precision positioning features;
High service life: over 10000Km, one year warranty;
Can choose a variety of AC servo motor or stepper motor drive: such as Delta, Mitsubishi, Panasonic, Yaskawa, and other brands;
Delivery for standard products: within 7-10 working days
Categories: Hot Sales, Stepper Electric Cylinder, Straight Electric Linear Actuators Tag: Cylinder bore:100
Motor power（W）: 1000 / 1500
Motor rated torque（N.m）: 4.7 / 7.1
Drive Type: ball screw / Lead screw
Typi Position repeatability（mm）:±0.02mm
Screw lead（mm）: 5/10
Max.Speed（mm/s）: 80/150
Max.Thrust（KG）: 1000
Effective stroke length（mm）: 50-1500mm
Basic weight 0 stroke inline installation（KG）: 9
Basic weight 0 stroke parallel installation（KG）: 12
Weight per 100mm stroke （KG）: 2.5
Magnetic sensor switch: Three-wire NPN/PNP Magnetic Switch x 3
Wire Length: 2m
Note: The weight of the electric cylinder is an estimated value and it is for reference only.

Parameter Name	Parameter Value
Type	electric
Technology	with guided piston rod with threaded rods with servo-motor belt-driven direct-drive
Configuration	double-acting
Material	steel, aluminum, anodized aluminum, aluminum profile, aluminum, stainless steel
Norms	ISO
Protection class	robust
Applications	index for hospital beds test for lifting applications linear for mechanical testing for medical equipment security control handling for robots for washdown applications for furniture for bed adjustment guide brake for presses damper for demanding applications clamping for chuck collets lift table for medical applications for lathes for punching tools for welding applications for mobile applications for HPLC columns for solar panels for parallel grippers for forklift trucks for heavy handling equipment for furniture level adjustment for harsh environments for photovoltaic applications for grippers propeller for agricultural machinery for explosive atmospheres for lifting
Other characteristics	compact motorized high-performance pull for heavy loads precision guided with integrated guides with guide custom externally-guided high-speed adjustable-stroke long-stroke stopper positioning lightweight standard
Stroke (mm)	50 - 1500
Force (N)	0 - 10000
Torque (Nm)	4.7 - 7.1
Speed (mm/s)	80 - 150
