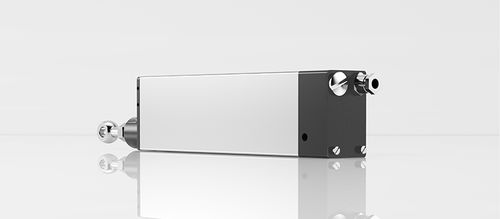

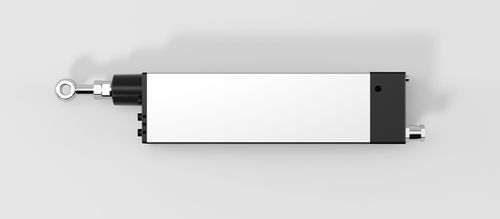

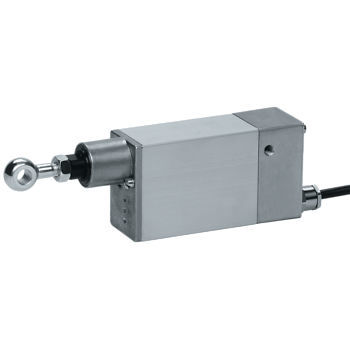

The compact and robust linear drive
The linear drives of the 010 series are at the forefront of the digitalization of machines. They were originally developed for electrically controlled throttle adjustments on diesel engines. Today, they can be found wherever fixture components, buildings or machines must be moved by remote control.

Two features are responsible for the electric cylinder BGR 010's success: These drives have been specially designed for confined spaces and harsh operating conditions; thus, they are compact and robust.

- Compact: Specially built for confined spaces.
- Robust: Impact-resistant aluminium housing with protection class IP54 (static)
- Durable: High-quality, maintenance-free drives
- Safe: Reliable end position limiting and overcurrent protection
- Durable: Above-average duty cycle of up to 40%

POSITION FEEDBACK CAN BE FLEXIBLY CONFIGURED
To ensure that the electric cylinder can be optimally integrated into your system, the position feedback signals can be flexibly configured.

End position feedback signals are available potential-free or potential-linked (non-isolated) as well as (for types LH10, LH11 and LH950) a high-precision potentiometer.

EASY INSTALLATION THANKS TO THE CUSTOMIZED ADAPTATION OPTIONS
The wide range of options means you can tailor these linear drives exactly to your needs:

Stroke length: The stroke length can be easily adjusted from the outside. Special customized
- stroke lengths or installation lengths are also available on request.
- Gearing: Choose between three versions with different combinations of power and speed.

Parameter Name	Parameter Value
Type	electric
Protection class	IP54 maintenance-free robust
Applications	for demanding applications
Other characteristics	compact
Stroke (mm)	1 - 100
Force (N)	500 - 500
Speed (mm/s)	38 - 38
