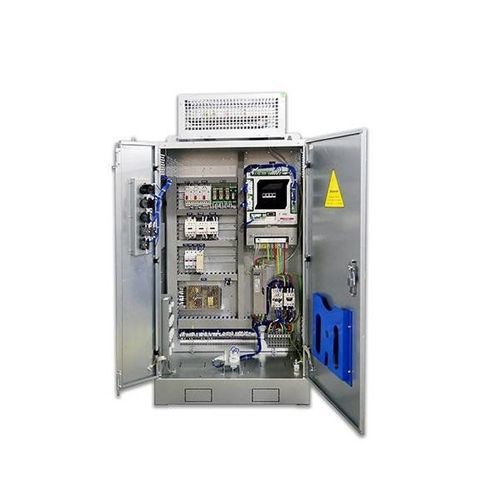

The elevator control cabinet is the device to control the operation of the elevator. It is usually installed in the control room. STEP elevator control cabinet supports simplex control, duplex control and group control. The control system is designed according to modern technology, under strict standards. Easy to install, Ability to control up to 128 floors and maximum speed of 6 m/s.

Simple Structure
Innovative design of door structure, improving cooling effect in cabinet.
C7000 control cabinet directly molded, lighter and stronger, the same dimension from 5.5kw-22kw

6 Patented Technologies
C7000 control cabinet won 1 invention patent, 2 appearance patents and 3 practical model patents

MR Technical Indicators

Power supply: 3 phase , AC380~415V , 50/60Hz
Rated power : 5.5 - 22kW
Rated speed : ≤2.5m/s
Motor type : Synchronous/Asynchronous
Motor Brake : DC110V , ≤3A
Illumination : AC220V
Control Method : Single / Duplex / Group Control
Dimension(mm) : 1184*420*200
Installation : Ground mounted /Wall mounted
MRL Technical Indicators
Model : MCP-SW/F-C7000
Power supply: 3 phase , AC380~415V , 50/60Hz
Rated power : 5.5 - 22kW
Rated speed : ≤2.5m/s
Motor type : Synchronous/Asynchronous
Motor Brake : DC110V , ≤3A
Illumination : AC220V
Control Method : Single / Duplex / Group Control
Control Cabinet Dimension(mm) : 1780*400*220
Brake Resistor Cabinet Dimension(mm) : 420*255*105~420*255*243
Installation : Wall mounted

Parameter Name	Parameter Value
Type/technology	electric
Product applications	for elevators
