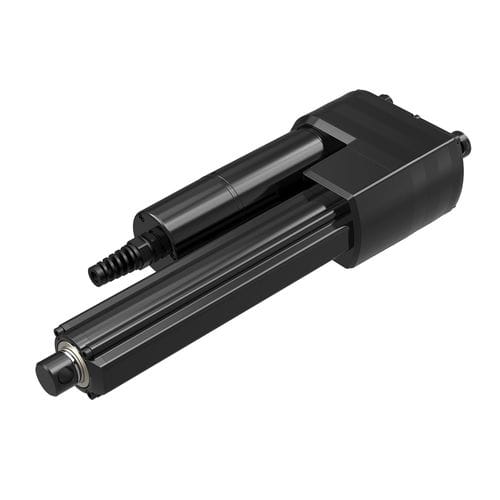

TiMOTION’s MA1 series linear actuator is the proven choice for applications requiring a durable, long life solution. Specifically designed for harsh working environments, the MA1 linear actuator is ideal for use in heavy-duty machinery, industrial equipment and off road vehicles. This linear actuator has been certified for applications requiring IP69K compliance.

Available options for the MA1 linear actuator include AC or DC power, ball or acme spindles, mechanical or electrical braking and a load limiting clutch or limit switches.

• Retracted length: ≥ Stroke + 160mm (ACME screw, without POT), ≥ Stroke + 201mm (Ball screw, without POT)
• Certificate: UL73, EMC
• Options: Overload clutch, electromagnetic brake, Hall sensors, POT, manual crank function
• Spindle: ACME or Ball screw
• Color: Black
• Operational temperature range at full performance: +5°C~+45°C
• Higher duty cycle (25%), corrosion proof

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	ball screw
Motor	DC, AC
Voltage (V)	36 - 36
Protection class	IP69K robust
Applications	industrial for vehicles for harsh environments for the harshest off-road environments
Other characteristics	pull with sensor option with brake push tug corrosion-resistant
Stroke (mm)	20 - 1000
Force (N)	2500 - 4500
Speed (mm/s)	0 - 14.3
Ambient temperature	Max.: 65 °C (149 °F)Min.: -30 °C (-22 °F)
