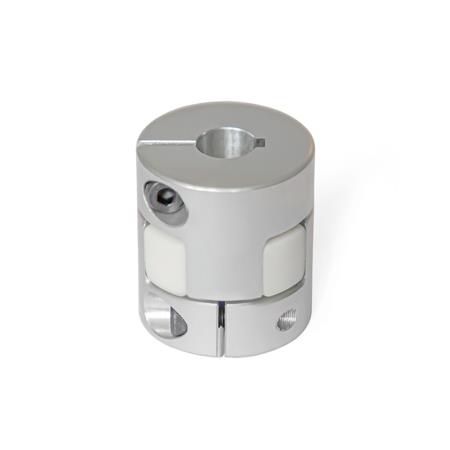

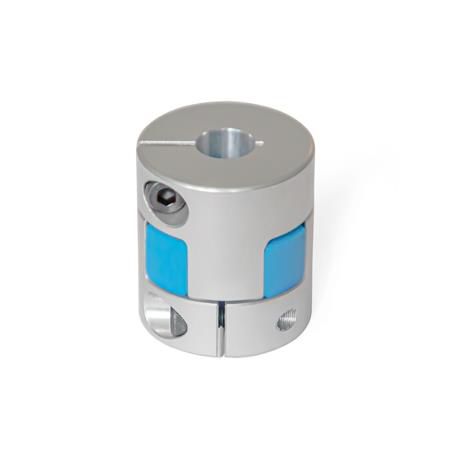

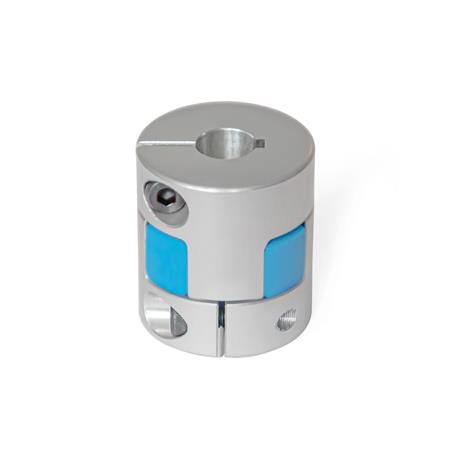

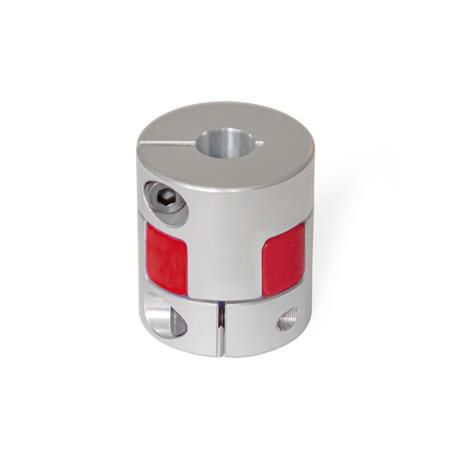

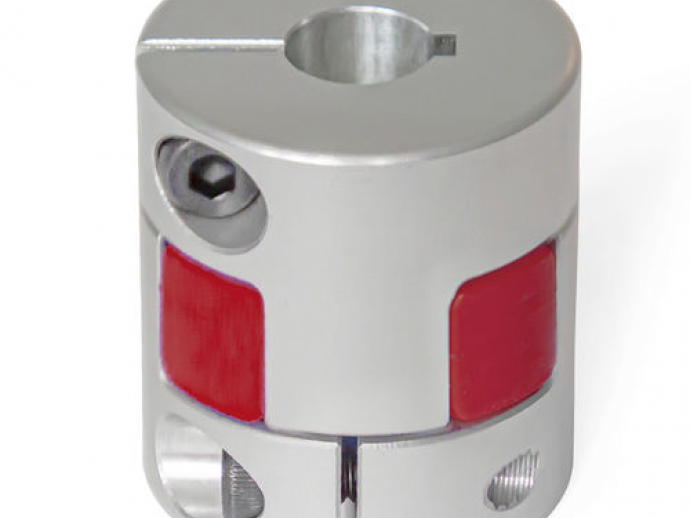

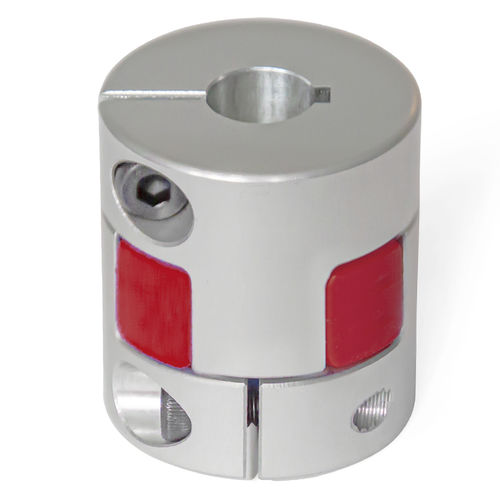

Elastomer jaw couplings GN 2240 can transmit very high torques while compensating for shaft misalignments and runout tolerances. They are preferred in applications where the focus lies on pure torque and power transmission.

The choice of three coupling spiders with different hardness values allows the properties of the coupling to be optimally matched to the specific requirements. The clamping hubs and simple plug-in installation make jaw couplings very easy to assemble.

With the bore code K, the keyway is always integrated into both bores d2 and d3.

Parameter Name	Parameter Value
Type	elastomer
Product applications	for shafts for mechanical power transmission for pumps engine for mixers for conveyors for spindles
Other characteristics	anti-vibration maintenance-free high-performance with spacer zero-backlash 3-part high-speed for high torque high-torque
Installation system	flange
Torque (Nm)	0 - 120
Rotational speed (rpm)	0 - 45000
