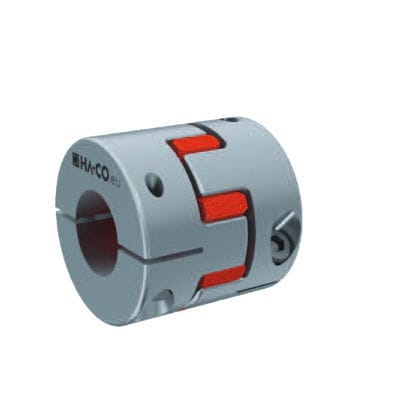

Short version with clamping hub and optimum damping characteristics. SKK compensating coupling!

Claw coupling

Elastomer couplings belong to the group of claw couplings and are used in applications that are susceptible to vibrations and shocks.

Features

Clamping hubs made of aluminum
Torque transmission is backlash-free due to preload
Since the coupling is plug-in, it is very easy to install
Electrically insulating
Elastomer core with 98° Shore A hardness results in optimum damping behavior
High temperature resistance values
Low mass moment of inertia
Optimized for servo motors
Other elastomer core hardnesses available
Special designs on request

When ordering, please specify the bores D1 to D2 in the comments field. The maximum and minimum possible diameters can be found in the data sheet.
We use a red elastomer core as standard and this is also included in the values in the table. However, we can also supply you with a different star. Please also write this in the comments field.

Parameter Name	Parameter Value
Type	elastomer claw
Product applications	transmission
Other characteristics	torque backlash-free compensating
Torque (Nm)	5 - 5 120 - 120
