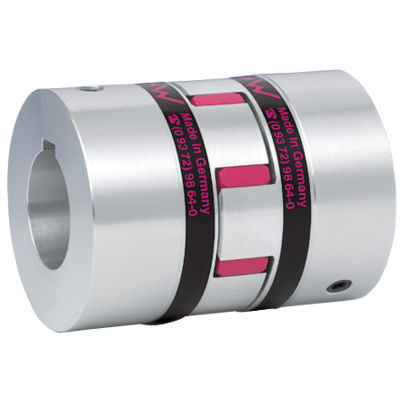

Elastomer Coupling EK1
Two coupling hubs are concentrically machined with curved jaws
• Bore tolerance
• keyway
• set screw or optional pilot bore
• Economical design
• concentrically machined
• vibration damping
• electrically isolating
• press fit design
• low backlash due to keyway connection
0,5 - 1100 Nm

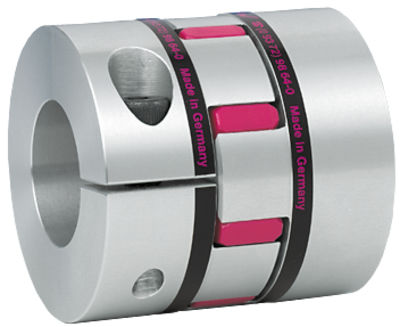

Elastomer Coupling EK2
Two coupling hubs are concentrically machined with curved jaws
• Easy assembly
• concentrically machined hubs
• vibration damping
• backlash free
• electrically isolating
• press fit design.
6 - 1100 Nm

Elastomer Coupling EKL
Two coupling hubs are concentrically machined with curved jaws
• Short compact design
• easy assembly
• vibration damping
• electrically isolating
• press fit design
• backlash free
0,5 - 1100 Nm

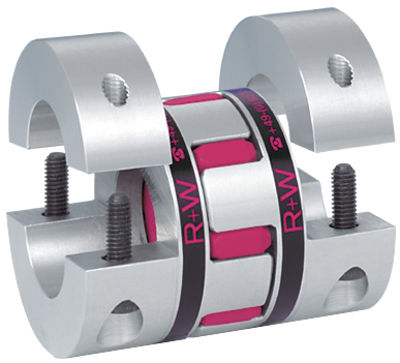

Elastomer Coupling EKH
Both clamping hubs are fully separable due to split hubs and ISO 4762 clamping screws
• Lateral mounting possible
• concentrically machined hubs
• vibration damping
• electrically isolating
• easy mounting
• backlash free
4 - 12.500 Nm

Parameter Name	Parameter Value
Type	elastomer
Other characteristics	compact backlash-free low-backlash
Installation system	set screw
Torque (Nm)	500 - 500 0.5 - 0.5
Rotational speed (rpm)	0 - 15000
