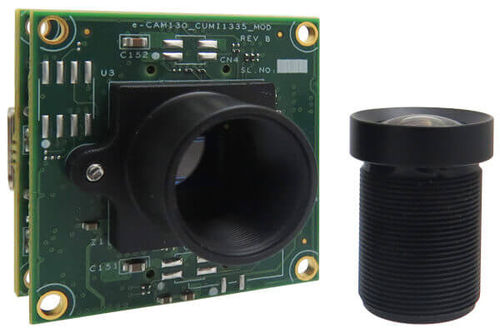

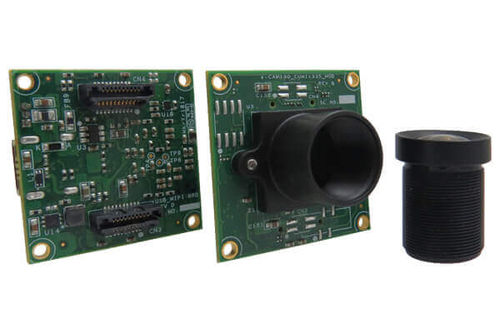

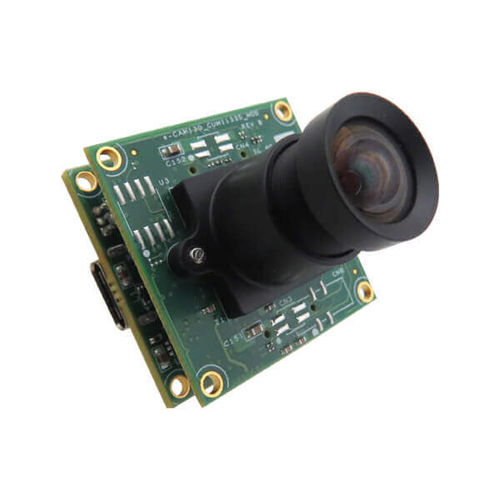

See3CAM_CU135 is a 13MP fixed focus 4K USB camera board with good low light performance and iHDR support. This 4K board camera is based on a 1/3.2" AR1335 CMOS image sensor with advanced 1.1µm pixel BSI technology from ON Semiconductor® It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement. It is a Plug-and-Play camera (UVC compliant) for Windows and Linux. This 4K board camera is also backward compatible with USB 2.0 host ports. The 13MP camera has a dedicated, high-performance Image Signal Processor chip (ISP) on board, that performs all the Auto functions (Auto White Balance, Auto Exposure control). The ISP and sensor settings have been fine-tuned to generate best-in-class video in both uncompressed UYVY and Compressed MJPEG.

Key Features of 4k Board Camera
* Houses e-CAM131_CUMI1335_MOD -13 MP AR1335 Color Caméra Module
* Fixed Focus with M12 lens holder
* Electronic Rolling Shutter

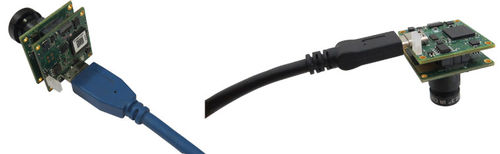

* Plug-&-Play (UVC compliant - No drivers required)and Backward compatibility with
USB 2.0 hosts with limited features and capabilities

Camera Module Features:

Sensor: AR1335from ON Semiconductor
Sensor Resolution and Optical Format: 13MP CMOS Image Sensor. 1/3.2" Optical format
Sensor type: 13MP CMOS Electronic Rolling Shutter Sensor
Image Signal Processor: Onboard high-performance ISP
Output Format Sensor Features: Uncompressed UYVY format and Compressed MJPEG format

Sensor Features:

Pixel size: 1.1 pm x 1.1 pm pixel with BSI technology
Sensor Active Area: 4208(H) x 3120(V)
Responsivity : 4700 e-/lux-sec
SNR: 37 dB
Dynamic Range : 69 dB

Parameter Name	Parameter Value
Applications	education for access control for parking lot management for retail for sport applications
Technology	iHDR
Sensor	CMOS
Interface	USB 2.0 USB 3.0
Resolution level	4K
Other characteristics	high-performance low light fixed-focus
