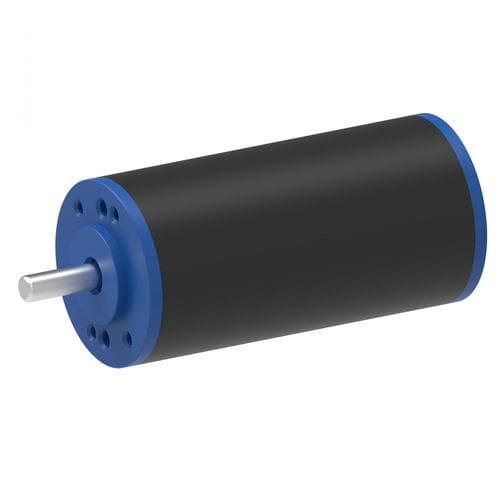

Features:
4-pole rotor with plastic-bonded magnets NeFeB
Threefold winding connected in delta
Internal Hall sensors for rotor position detection offest by 120°
Closed aluminium housing with aluminium bearing flanges
Direction of rotation CW / CCW
Multiple combination possibilities with gears, encoders, brakes,

Parameter Name	Parameter Value
AC/DC	DC
Type	EC
Voltage (V)	24 - 24
Number of poles	4-pole
Power (W)	15 - 15 30 - 30 42 - 42
Intensity (A)	1.12 - 1.97
Torque (Nm)	0.04 - 0.04 0.09 - 0.09 0.13 - 0.13
Rotational speed (rpm)	3100 - 3100
Diameter (mm)	42 - 42
Operating temperature (°C)	-30 - 40
