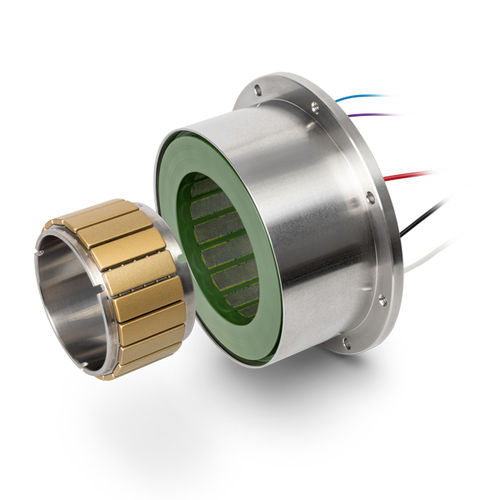

The EC frameless DT motors are BLDC motor kits with internal-rotor technology. The rotor and stator are delivered separately, without bearings or motor shaft, and are connected only during assembly. The flat design, the high torques, and a lot of space for cable glands allow a high level of integration into your application.

Parameter Name	Parameter Value
AC/DC	3-phase
Type	EC
Voltage (V)	48 - 48
Configuration	frameless
Number of poles	10-pole
Intensity (A)	10.8 - 10.8
Torque (Nm)	2.9 - 2.9
Rotational speed (rpm)	1580 - 1580
Operating temperature (°C)	-40 - 100
