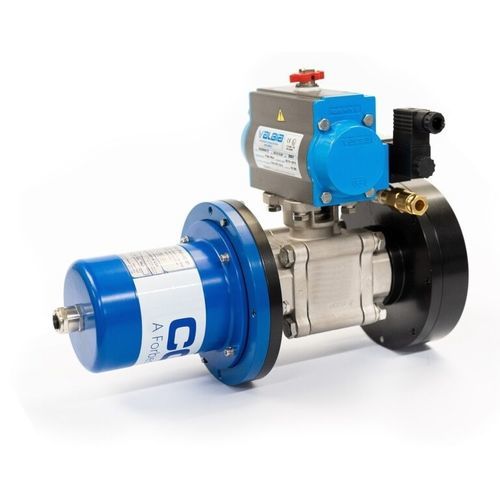

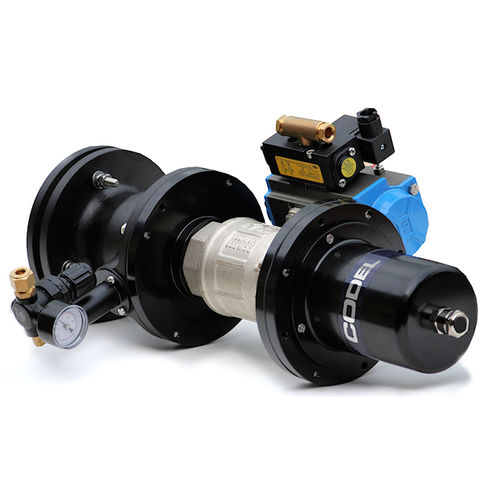

The DCEM2100 provides a continuous measurement of opacity or dust concentration in flue gases by continuously measuring the transmissivity of visible light across a process duct or stack.
Its dual-pass optical arrangement is based on twin transmissometers measuring in opposing directions through the same section of the gas stream, providing not only an accurate average of the dust loading, but also providing a unique dynamic assessment of any misalignment errors due to stack movement.

Features & Benefits

% opacity or dust density in mg/Nm3.
TUV & MCERT Approved.
Dual-pass, open-path transmissometer.
Intégral auto zéro and span check.
Full contamination check on ail active optical surfaces.
Dynamic misalignment check.
Intégral high efficiency air curtains for maximum uninterrupted service.

Typical Dust Monitoring Applications
Large Combustion Plants
Small Combustion Plants
Cement Plants
Dust Collectors
FGD Process
SCR and SNCR Process
Energy From Waste
Incinerators
Renewable Energy
Power Generation
Pharmaceutical
Petrochemical

Parameter Name	Parameter Value
Type	dust concentration and opacity
Domain	for the petrochemical industry for the pharmaceutical industry
Interface	Modbus RS-485 RS-232
Other characteristics	continuous
