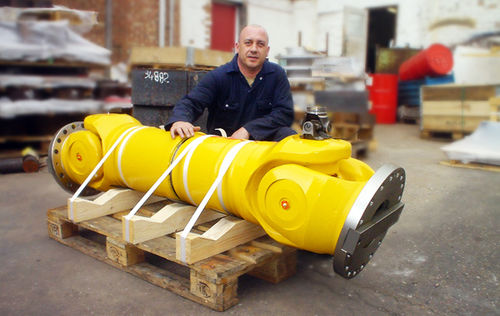

Heavy Duty Universal Driveshaft
Our range of Heavy Duty Universal Drive shafts covers the DIN range from 225 mm to 435 mm flange diameter. Face key design flanges are also available. This gives a torque transmission range from 18,000 Nm to 270,000 Nm.
As well as standard telescopic drive shafts we can also offer Double Joint assemblies, fixed length, Mid Ship Shafts with support Bearings and Short Coupled Drive shafts.
Applications requiring wide-angle flanges, long slip movement and balance grades to G6.3 tolerance can also be offered.
Our in-house selection software allows us to offer complete heavy duty driveshaft systems with minimal torsional twist or customized stiffness to suit a particular system.
Bearing lifetime, critical speed and a t.v.a. studies can also be carried out.
We can also offer our heavy duty drive shafts with custom paint finishes including two pack epoxy paint for corrosive environments and with any RAL colour specified by our customers.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
