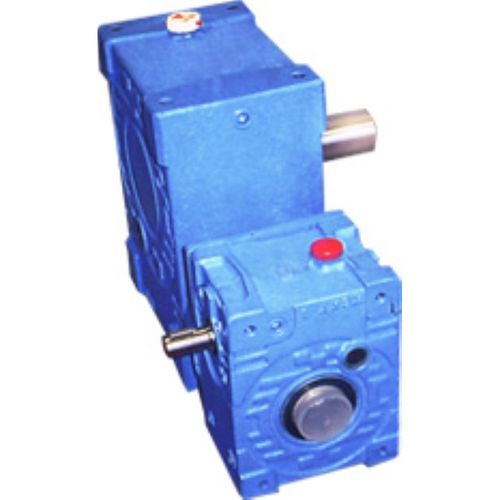

The MAH Series was born through the concentration of the many years of experience at Makishinko in the development of Worm Speed Reducer and possesses the latest technologies. This series combines the high efficiency of the top line MakiAce MA Series with a high quality double speed Worm Speed Reducer to achieve high power, high efficiency and miniaturization.
Makishinko strongly recommends this series for general industrial machinery such as stage equipment and lift equipment.

Quiet operation -
Compared to hypoid and helical gears, Worm Speed Reducer offer quiet and smooth operation through slip transmission.

Reduction ratio -
High reduction ratio (100 to 3600)

Torque -
A wide range is available from 88 to 3,570 Nm.

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	200 - 500 100 - 200 1000 - 2000 2000 - 5000
Shaft configuration	hollow-shaft solid-shaft dual-shaft
Number of stages	two-stage
Performance	high-performance high-efficiency high-torque high-power
Applications	transmission double-speed
Other characteristics	compact industrial
Rotational speed (rpm)	100 - 1800
Power (W)	10 - 4470
