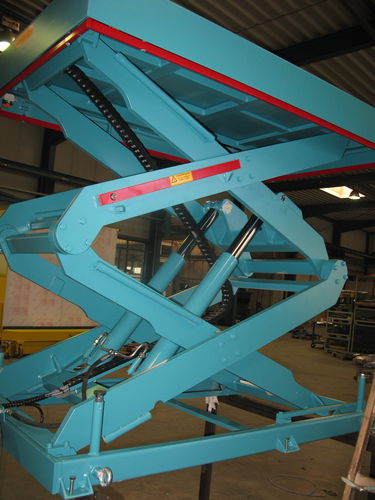

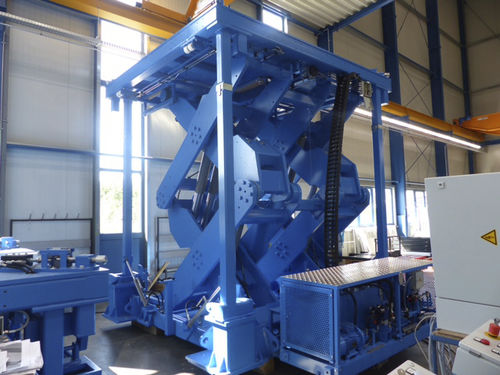

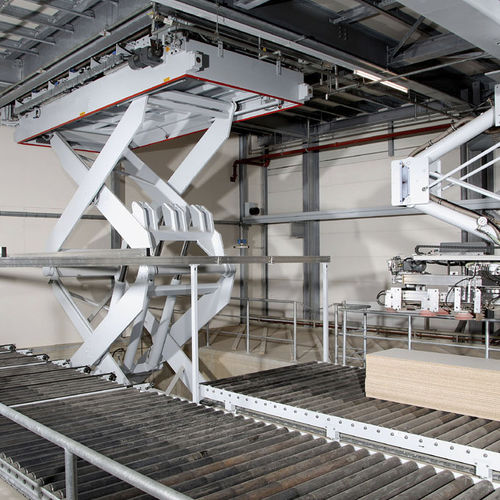

Our lifting tables for production lines are tailor-made solutions to meet the specific requirements of each sector.

Dynalserg's product line is characterised by the use of selected materials, a robust finish and a careful calculation of the requirements demanded, thus guaranteeing the quality and production safety necessary in your sector.


A special feature is the technology we have developed that significantly reduces oil heat generation at high frequencies (60, 90, 120 or 300 cycles/hour) and high lifting speeds (300 mm/sec).

Compared to traditional systems, this guarantees that full performance capacity is maintained at high performance levels.

Advantages of hydraulic drive:

an excellent price-performance ratio
high frequencies of work
great durability
high availability for high performance

The energy required to raise the platform is supplied by a hydraulic unit connected by hydraulic hoses to the lifting and lowering cylinders of the scissor system. The hydraulic unit consists of the following components from renowned international brands:

Electromotor connected to hydraulic pump.
Tank with oil level indicator and oil and air filters. A thermal probe is normally included.
Lifting and lowering valve including emergency drain valve.
Manometer for checking the pressure of the hydraulic system.
Pressureless circulation of the pump.
Proportional control.

Parameter Name	Parameter Value
Technology	double-scissor triple-scissor four-scissor
Operation	hydraulic, electric, electro-hydarulic
Type	stationary
Application	loading for heavy loads
Other characteristics	with safety barrier custom with built-in scale with protective bellows precision
Capacity	500 kg, 30,000 kg (1,102.3 lb)
Lifting height	Max.: 7,000 mm (276 in)Min.: 400 mm (16 in)
