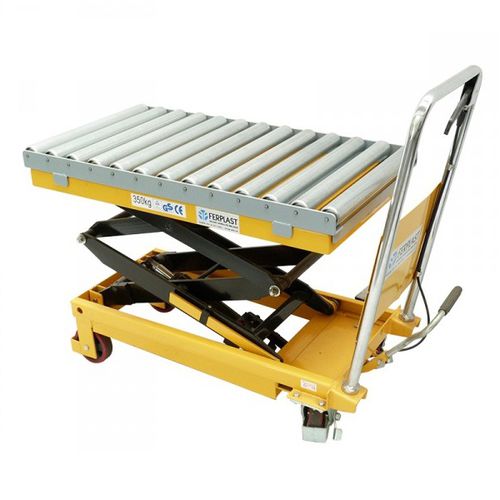

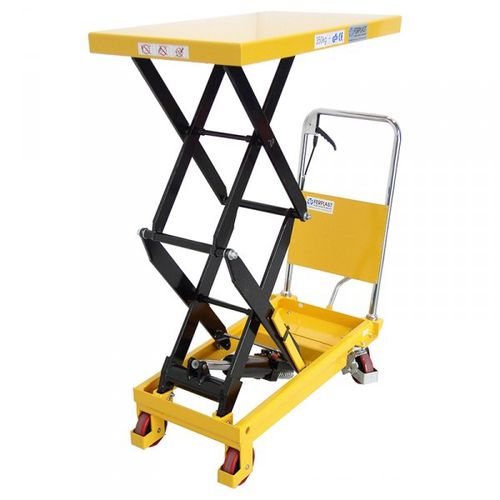

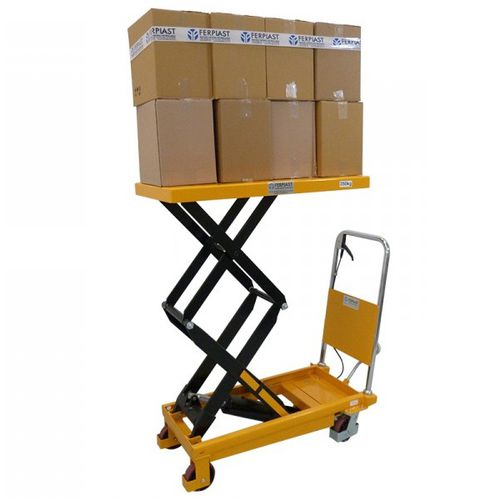

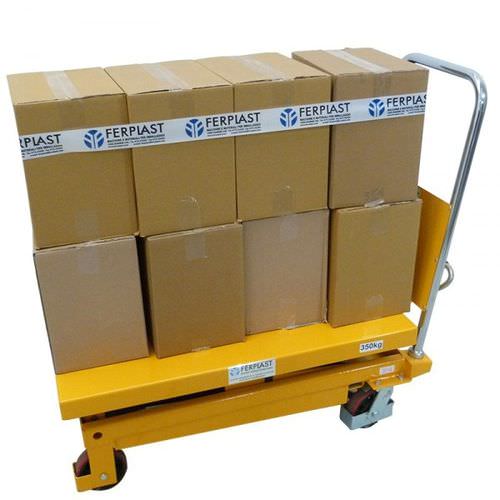

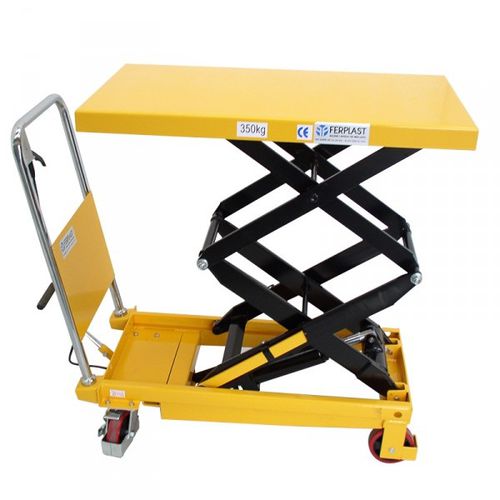

Double pantograph wheeled lifting platforms. Max height up to 1500 mm Load capacity from 150-680 kg.

Pantograph lifting platforms with lifting by foot pump, 4 wheels of which 2 fixed and 2 pivoting, parking brake, chrome-plated handle for pushing, manual lever for speed-controlled descent, oven-dried enamel paint.

Parameter Name	Parameter Value
Technology	double-scissor
Operation	manual, pedal-operated
Type	mobile
Application	loading
Other characteristics	for order picking
Capacity	Min.: 150 kg (330.7 lb)Max.: 680 kg (1,499.1 lb)150 kg, 350 kg, 680 kg (330.7 lb)
Lowered height	Min.: 300 mm (12 in)Max.: 474 mm (19 in)
Lifting height	Min.: 1,100 mm (43 in)Max.: 1,500 mm (59 in)
Stroke (mm)	800 - 950
Tray length	Min.: 700 mm (27.56 in)Max.: 1,220 mm (48.03 in)700 mm, 910 mm, 1,220 mm (27.56 in)
Tray width	Min.: 450 mm (17.72 in)Max.: 600 mm (23.62 in)450 mm, 500 mm, 600 mm (17.72 in)
Weight (kg)	Min.: 64
