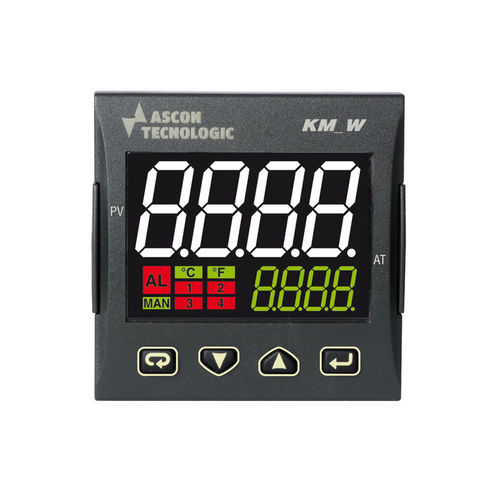

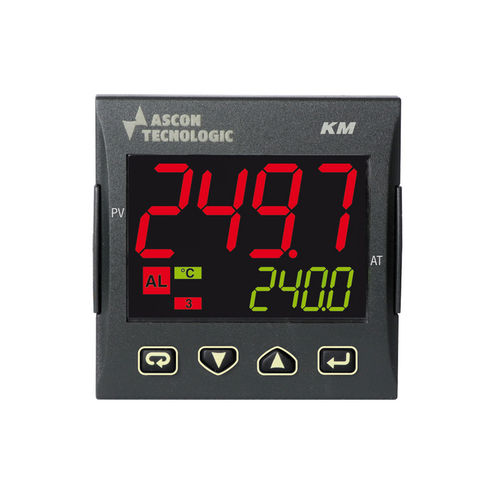

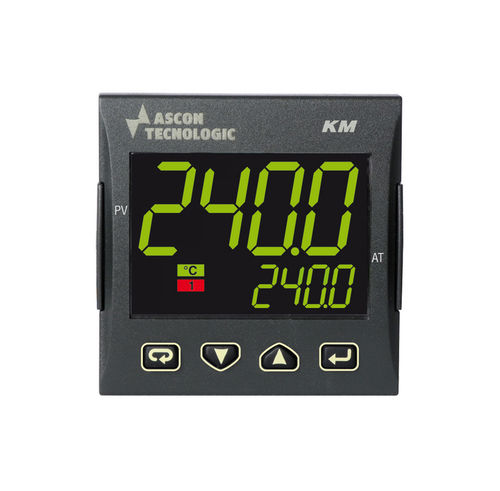

Controller, programmer with Heater Break (HB) function

This controller combines all the existing functions on the Kube line with the Heater Break Down Alarm (HB) function which allows you to keep the condition of the load under control and signal if a fault occurs in the heating element.
It is the ideal instrument to put on the shelf as it is the most complete in terms of resources on board: extended switching power supply and universal input.

FUNCTION -
Programmer, Transmitter, Controller

DIMENSIONS -
48 x 48 mm

DISPLAY -

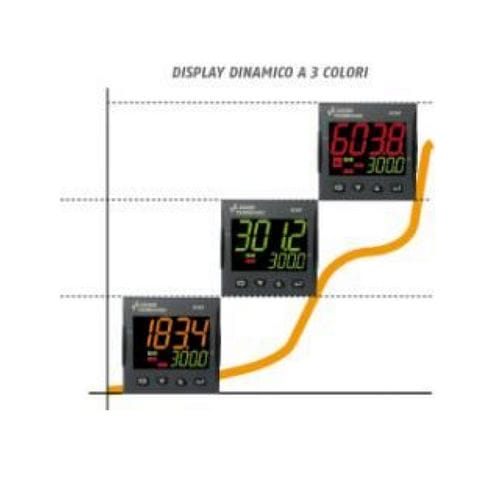

2 display with 4 digit 3 dynamic colours

POWER SUPPLY -
24… 240 Vac/Vdc

INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, 1 digital, NTC, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal

NUMBER OF OUTPUTS -
1, 2, 3

OUTPUTS -
0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control

DIGITAL INPUTS -
1, 2

AUXILIARY INPUT -
Current transformer

INDEPENDENT TIMER -
Yes

NUMBER OF PROGRAMS / SEGMENTS -
1 program with 8 segments

SPECIAL FUNCTIONS -
Hours/Days worked, Transmitter power supply, User calibration, Wattmeter

CONTROL -
ON/OFF and PID single or double action

CERTIFICATIONS -
CE, UL

Parameter Name	Parameter Value
Display	double LED display
Type	PID
Protection level	UL IP65
Use	heating
Other characteristics	configurable RS-485 universal auto-tuning
Maximum temperature (°C)	-20 - 70
