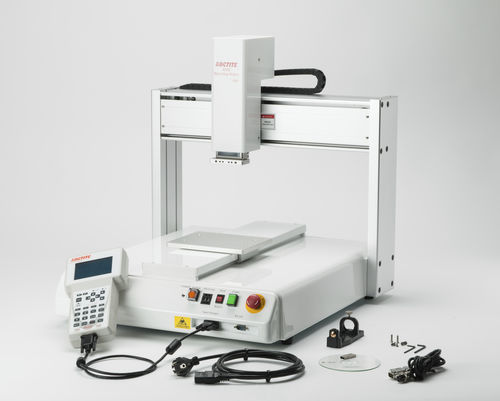

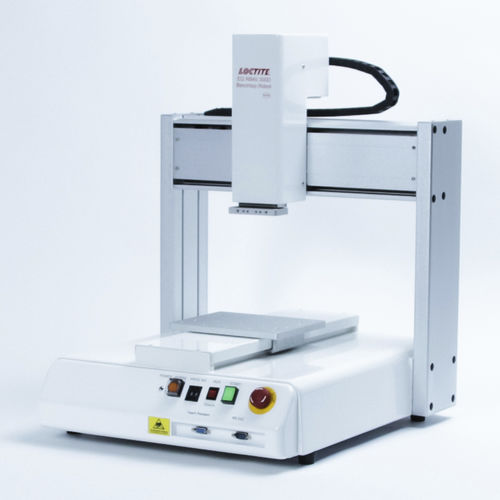

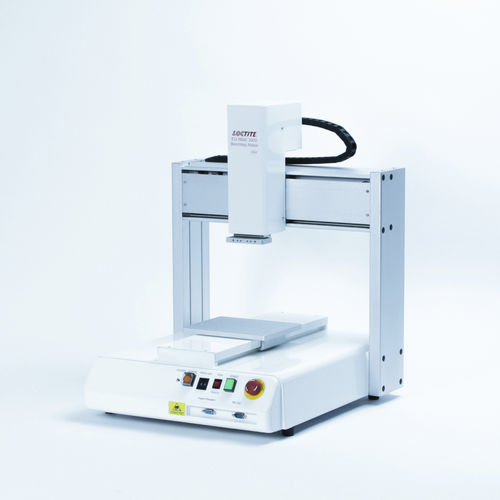

The Loctite 300 D-Series Dispensing Robot has a 300 x 300 x 100 mm range of operation (X,Y,Z) and has features and accessories that are custom tailored for adhesive dispensing processess. This low-cost benchtop robot has 3-axis control and 120 VAC or 220 VAC operation with a 24 VDC output signal.

PRODUCT FEATURES
•Designed for adhesive dispensing.
•Independent dispense on/off purge control button on front panel allows adhesive to be purged from a dispense valve to prevent curing or for aiding initial set-up. Great for purging two-part materials that have a very short pot life.
•No special programming required.
•Integrated solution - plug and play accessories.
•Software utility program compensates for positional offsets when dispense needle tips or barrels are changed.

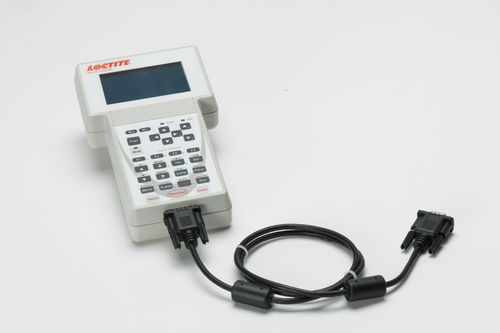

•Teach Pendant program storage capabilities allows dispense program to be easily transferred from Robot to Robot.
•Over-speed error indicator prevents Robot from traveling too fast during the execution of the program.
•100 programs, 4,000 points memory per program compact flash card.
•Brush area function command allows the tip to "paint" a specifically designed area.
•Shortcut keys for common tasks.
•No programming experience required.
•Auto-switching power supply 95-132 VAC or 180-250 VAC.

The Teach Pendant, dispensing equipment, cables and mounting hardware must be purchased separately.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis
Function	dispensing
Mounting	benchtop
