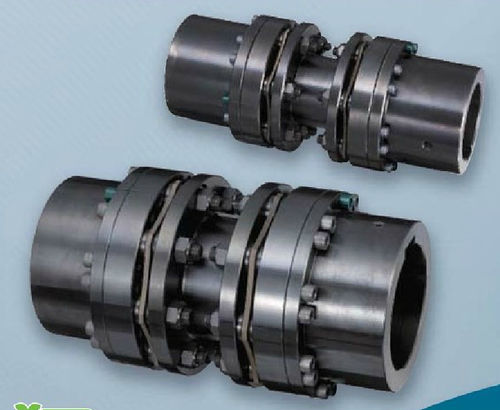

Compact Flex Couplings with substantially higher capacity.
New compact NER Series Flex Couplings enables higher capacity and downsizing through a newly developed disc and optimized bolts.
・Applicable shaft diameter ：Φ25mm～Φ145mm


Features

・High kW ratings

New disc style coupling provides substantially higher torque than with conventional series.

・Superior handleability

Original center unit structure that combines the discs and spacer eliminates troublesome disc assembly at the worksite.

Just attach or remove bolts to attach or remove the center unit.

・Can be used with large shaft bore diameters

The center unit allows for larger maximum bore diameters than with conventional series.

・Wide variety of options available

A wide variety of combinations are available, including locking types, flange mounted types, and Power Locks with reinforced plastic spacers.

・Non-backlash ・No lubrication ・Longevity

Ideal for equipment that positions with a servomotor as the coupling has no backlash and a high torsional stiffness.

No need for lubrication as there are no sliding areas.

Parameter Name	Parameter Value
Type	disc
Product applications	shaft industrial flange
Other characteristics	torque compact zero-backlash large non-lubricated sliding
Installation system	flange
Torque (Nm)	500 - 500 590 - 590
