Construction and mode of operation
Flyweights are normally mounted so that they can pivot on pins, which are fitted to a flange. There are tension springs which restrain neighboring flyweights until centrifugal force overcomes the spring force. Then the flyweights lift from their seats and the bonded linings contact the inside diameter of the clutch drum. Due to the asymmetric arrangement of the flyweights, the torque that can be transmitted by this type of clutch depends on the direction of rotation.
Construction and mode of operation

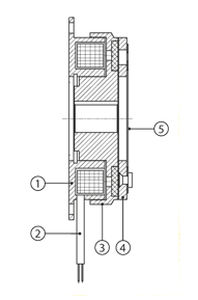

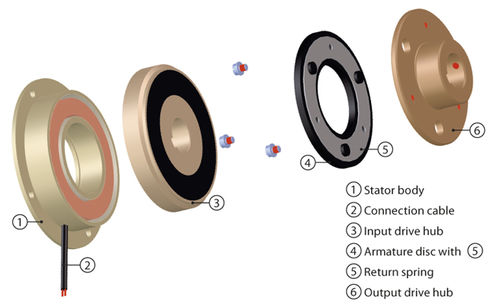

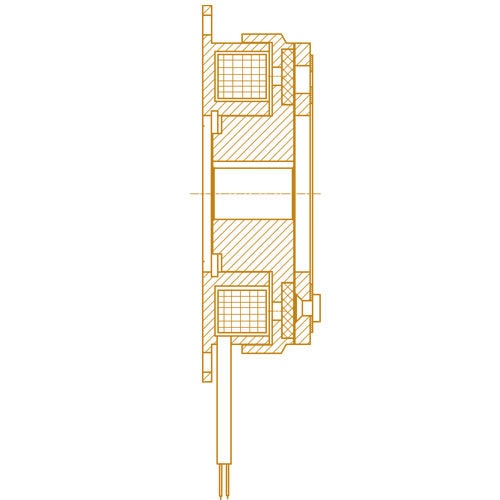

The basic model of electromagnetic clutch without bearings consists of stator body with cast-in coil and connection cable, the input drive hub and the armature disc to which the return spring is riveted.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
disc
|
| Operation |
electromagnetic, spring
|
| Other characteristics |
without bearings
|
| Torque (Nm) |
1 - 280
|
| Rotational speed (rpm) |
2000 - 10000
|
