About

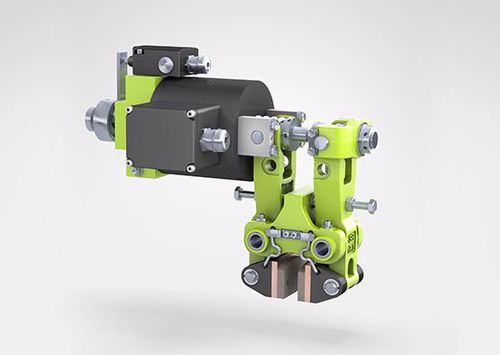

The SB series stands out due to its extremely fast closing times and its variability. It is used in a wide range of industries around the world due to its versatility, ease of application and user-friendly handling.
MAIN FEATURES
Electromagnetic release
High performance by overforcing of electromagnet (magnet IP54)
Internal rectifier / economizer unit, direct connection to 380-480 V AC, 3 Ph., 50-60 Hz
Adjustable brake torque
Simple, manual wear compensation
Organic, non-asbestos linings
Manual release and limit switch release control as a standard
Stainless steel brake body
OPTIONS
Proximity switch pad wear
Sintered linings
Hydraulic damping unit for continuously adjustable apply time of 1-8 seconds
Motor connection flange incl. protective cover
Brake discs with hubs or couplings
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
disc
|
| Operation |
electromagnetic, hydraulic, manual, manual release
|
| Other characteristics |
adjustable
|
| Torque (Nm) |
535 - 535
|
| Braking force |
3,000 N
|
