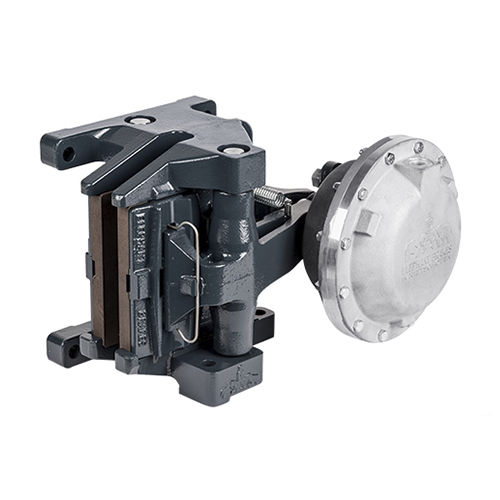

Pneumatically actuated brake with robust design. The R&H 350.135.01 is reliable and offers easy assembly thanks to the ability to bolt on from the side. Extremely robust thanks to large, durable membrane. Fields of use: Paper machines, shaft detents on vessels.

Directly pneumatically applied disc brakes are used in practically every area of mechanical engineering. The actuating force is created here through compressed air, and the brake is released by spring force. Its range of application spans from light uses such as web tension control to highly demanding applications such as holding and service brakes that can have a braking force up to 33,000 N with just one caliper, depending on the air pressure. There are almost no limits to the braking torque that can be generated, which depends on the brake disc diameter and the number of calipers!

Parameter Name	Parameter Value
Type	disc
Operation	release spring, pneumatic clamping
Other characteristics	robust tension control
Torque (Nm)	0 - 0
Braking force	Max.: 30,000 NMin.: 0 N
