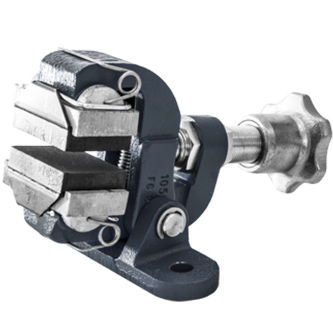

This spring applied, manually adjustable brake caliper is designed as a holding and tension (continuous duty) brake for light and medium load applications in general mechanical engineering with a braking force up to 880 N.

Purely mechanical brakes are often sufficient for simple, secondary applications. The actuating force can be generated through a lever system or a spring with manually adjustable tension. Examples of this application are basic winding machines for foil, paper, cable, wire, and metal band or even strictly for holding applications such as servicing and maintenance work in ventilator construction or shipbuilding, as well as locking mechanisms in handling systems.

Parameter Name	Parameter Value
Type	disc
Operation	spring, mechanical, manual
Torque (Nm)	0 - 240
Braking force	Max.: 880 NMin.: 0 N
