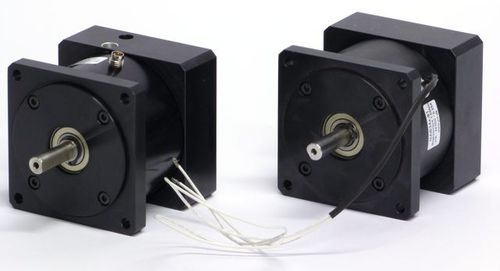

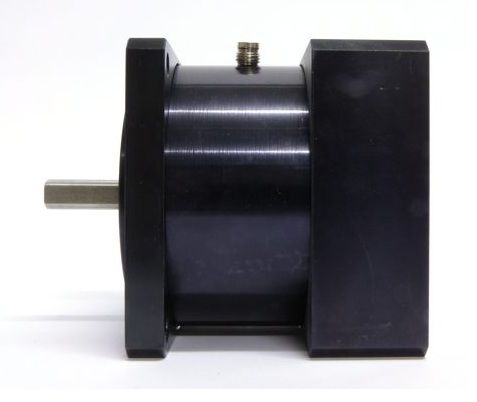

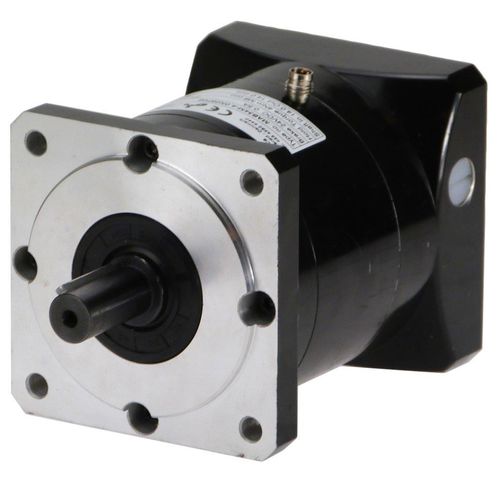

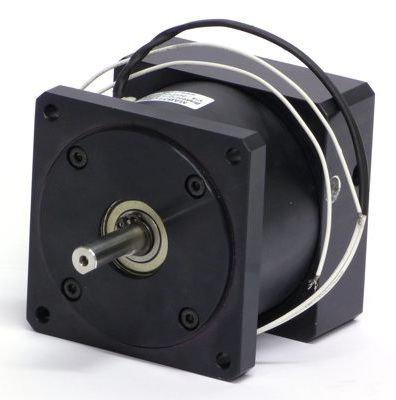

Electronic brake for all NEMA34 motors

The electronic brake is designed to be mounted on step- and servo motors, such as the MIS340,MIS341,MIS342 series of integrated stepper motors and MST340, MST341,MST342 series of stepper motors without build in controller.
A high quality electro-magnetic brake is mounted inside the housing. The brake has zero backlash and no auditory noise.
It fits on all step- and servo motors with NEMA3486x86mm flange and optional 9.35mm and 14mm shaft.
The brake is used when it is desired to hold the motor shaft fixed at power off, or when the motor is used in a vertical linear application.
When 24 VDC is connected, the brake will be deactivated and the motor can turn freely. It is recommended to use the brake only as a holding brake and not as an emergency brake.

Parameter Name	Parameter Value
Type	disc
Operation	electromagnetic
Other characteristics	NEMA for servo motors
Torque (Nm)	1.7 - 1.7 4 - 4
