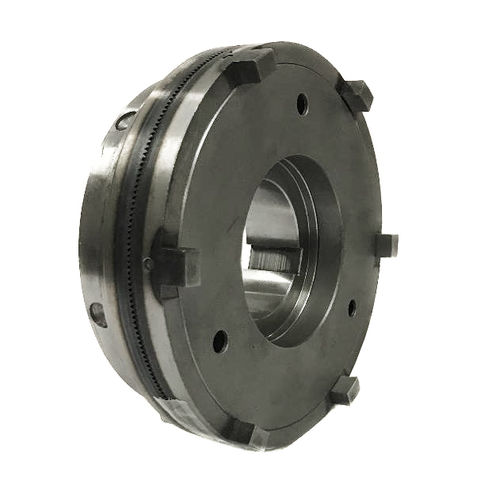

Electromagnetic brake with front toothing, operation with milled flange EC/Z-F

Tension 24 V dc – 0 + 15%
Used for dry and oil applications.
Used for dry and oil bath applications.
It must be engaged at standstill or at very low rpm.
The magnet cup has to be secured to the machine frame, while the flange has to be connected to the rotating part.

Parameter Name	Parameter Value
Type	disc multiple-disc
Operation	electromagnetic
Torque (Nm)	0 - 0 100 - 100
Power (W)	6 - 162
