Application areas:
Crane systems
Offshore / Ship
Steel industry
Wind industry
Product type:
Disc brake

Product description
"Low-speed" brake.

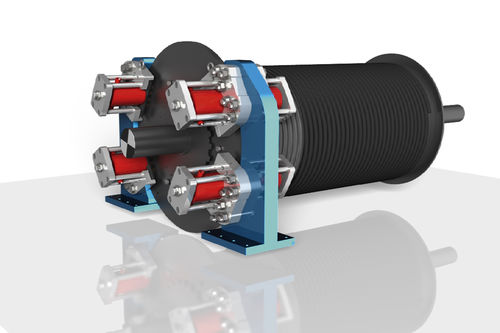

Caliper safety disc brake direct acting at the board disc of a rope drum.
Load crash security and protection ( also reacting in case of gear shaft fracture).

Direct-acting / Without lever transmission
Pad forces up to 400 kN per clamp system
Clamp varations on one brake disc (e.g: 4 x SCFH-4= 1600 kN pad force)
High and independent direction of rotation braking torque

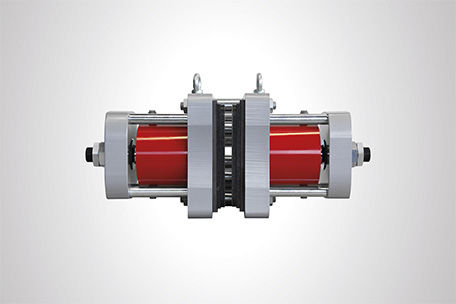

Two identical clamp halves
Manual adjustment of brake lining wear
Lifting gap adjustable from 1 mm to 3 mm
The hydraulic system is completely encapsulated

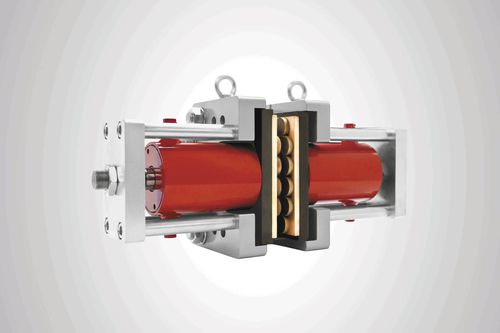

Low-wear sintered brake linings as standard
MADE IN GERMANY, own production
PLEASE NOTE:
The "Fast-speed" brake (between motor and gear box) operated electro-hydraulical (thruster) should be equipped with the "TURBO control system for thrusters" to guarantee almost simultaneous reaction times of both ("Fast- and Low" speed brakes) brake systems. Enormous impacts into the gear box due to different reaction times can be strongly reduced or can be prevented!

Braking by spring force
Lifting by hydraulic cylinder
Self-acting in case of power failure

Very high quality and safety level
Long service-life / Reduction of maintenance and follow-up costs

Monitoring equipment for brake opened, closed, wear
(Please indicate 2 limit switches)
Hand lifting via hand pump on the hydraulic power unit
Hydraulic power units are suitable for parallel operations of clamps
Special design for increased or lower ambient temperatures
Hydraulic system with hardly inflammable hydraulic liquid

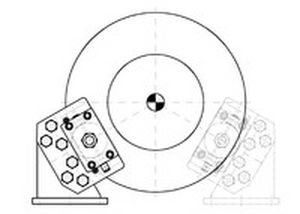

Brake discs with hub or in flange-mounted

Parameter Name	Parameter Value
Type	disc
Operation	hydraulic, spring
Other characteristics	adjustable
Braking force	1,600 kN
